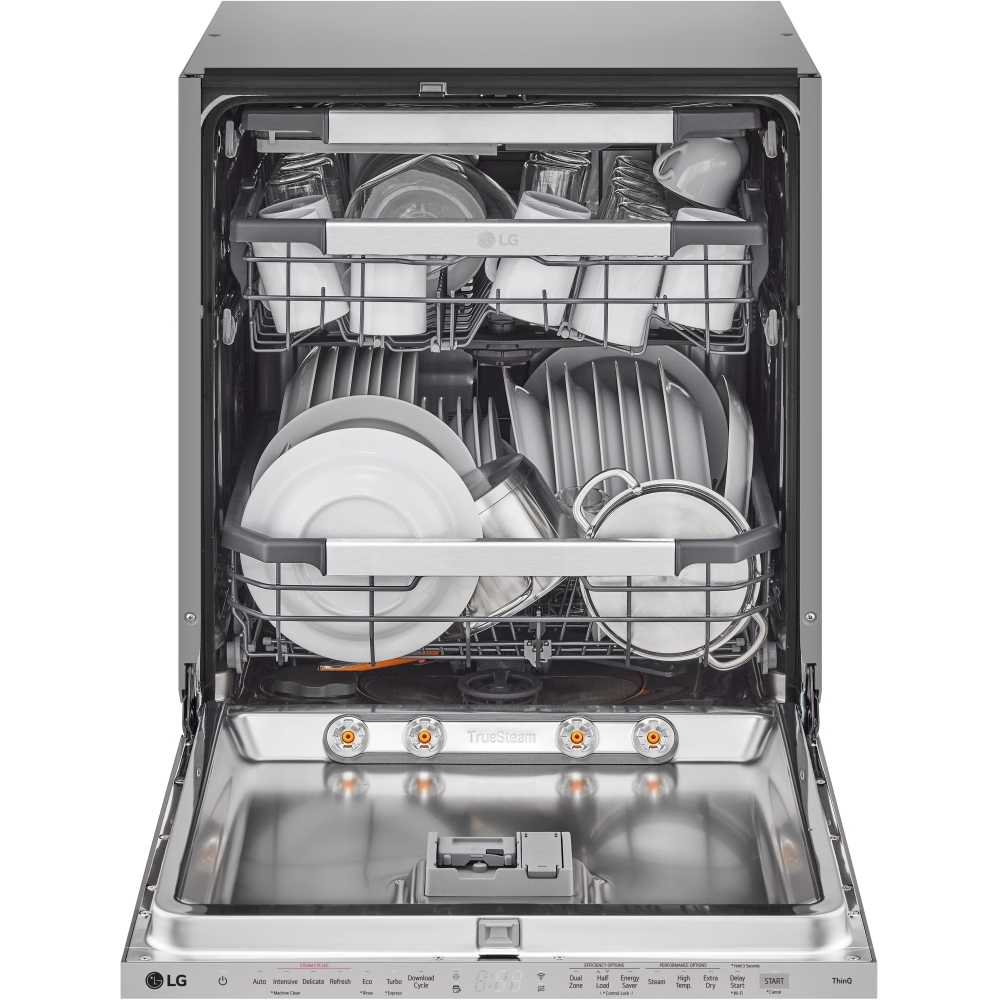

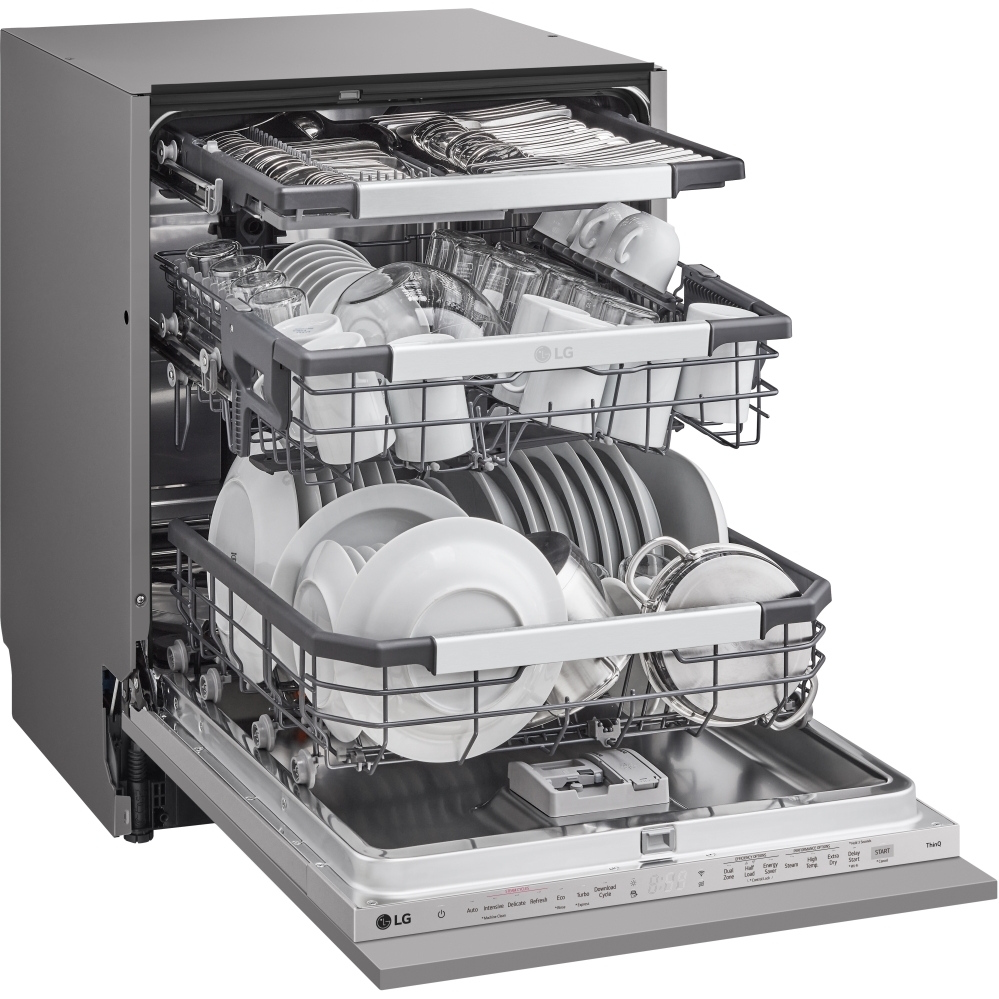

LG DB476TXS Series 8 TrueSteam™ QuadWash Pro™ Fully Integrated Dishwasher
(Discontinued)
This item is not currently available
Service that goes further
- Product code: DB476TXS
- Place Settings - 14
- TrueSteam
- QuadWash
- Auto Open Door
- Warranty - 5 years parts and labour
Product Dimensions (HxWxD) (mm) - 815 x 598 x 554
A
Energy
Rating

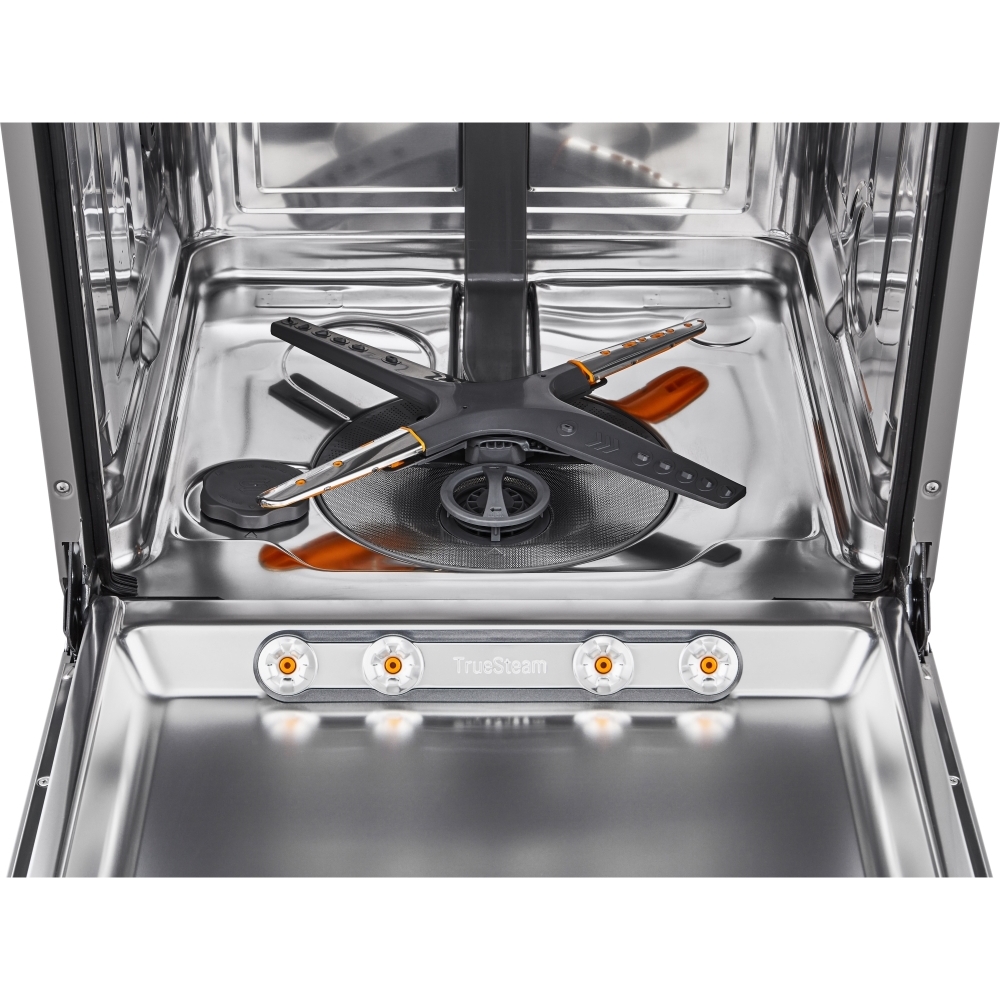

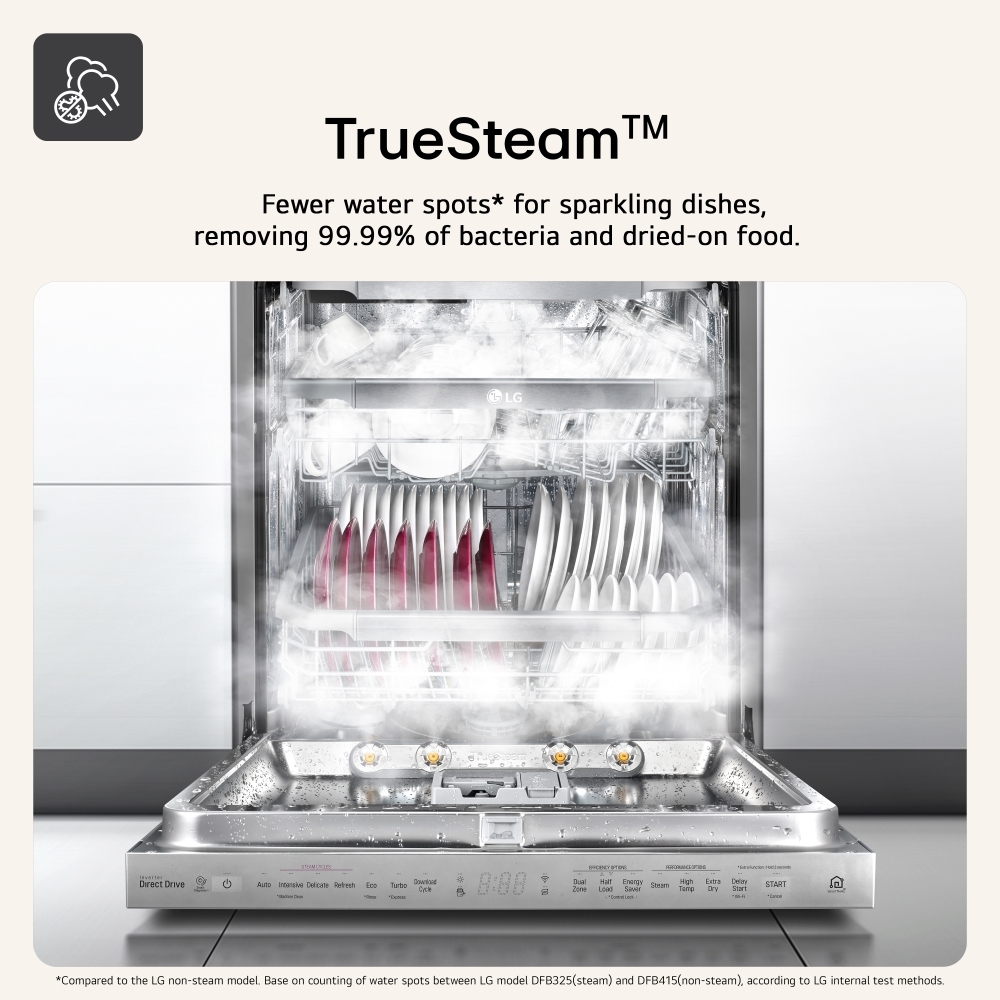

TrueSteam™
TrueSteam removes 99.9% of bacteria and germs remaining on the dishes with hot steam generated from boiling water of 100 degrees Celsius, and is certified by TÜV Rheinland. The steam is sprayed from the front, bottom and top of the tub to clean and sterilize all dishes. In addition, True Steam even washes away tiny minerals left on the tableware, reducing water spots and leaving the dishes shiny.

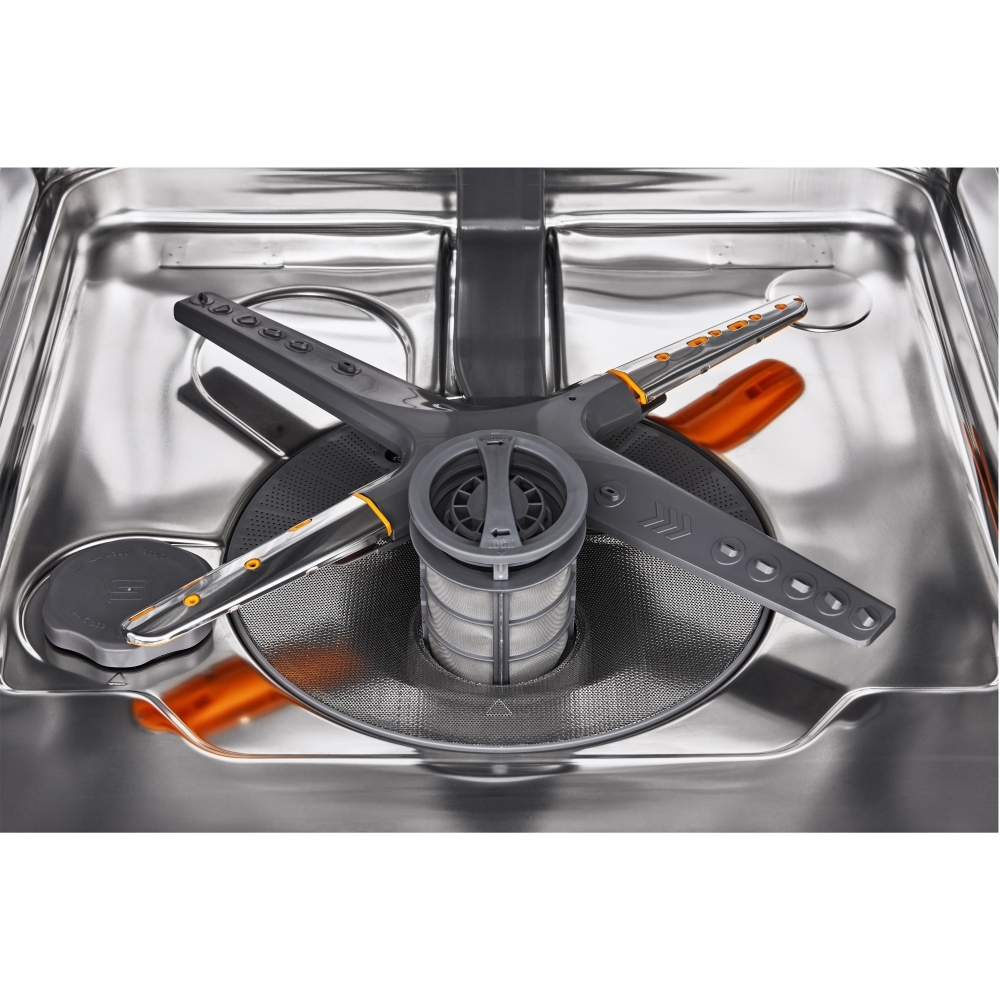

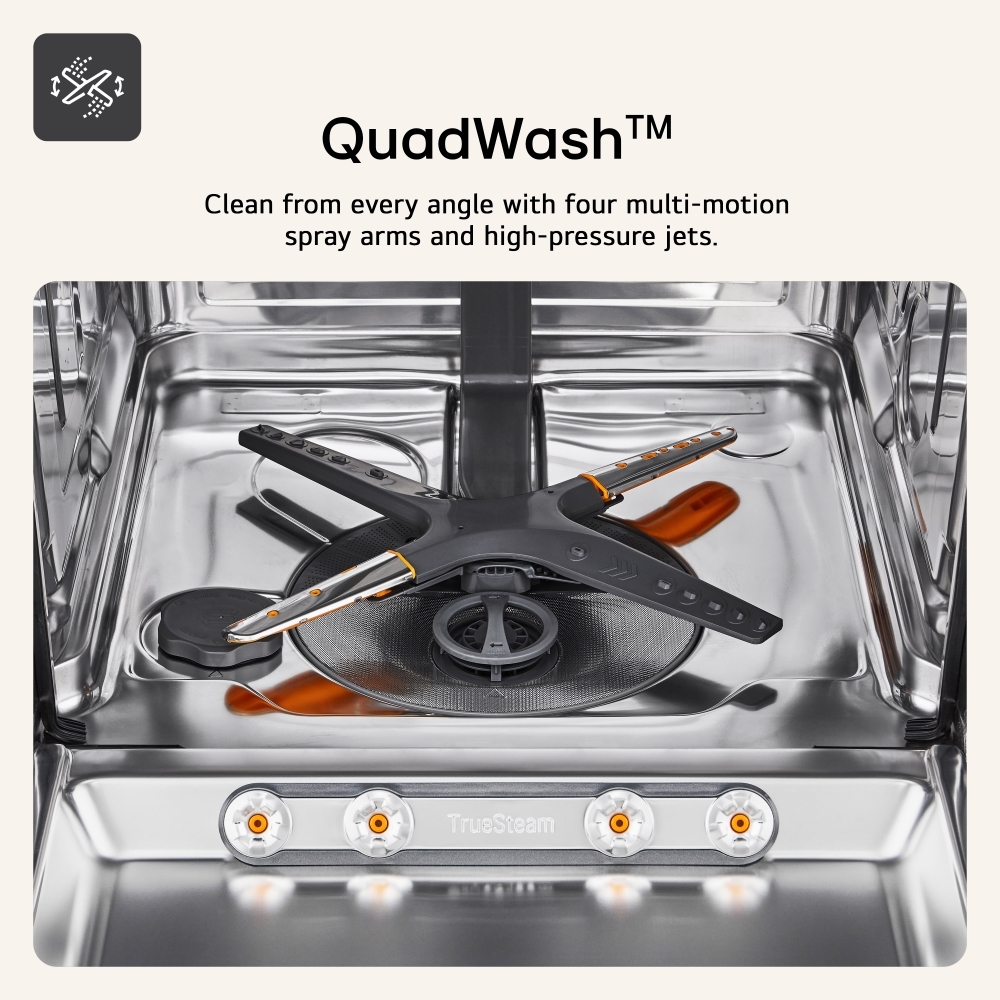

QuadWash™
QuadWash™ is a four wash arm system that sprays water. Normally, other dishwashers have two washing arms, but LG added two more arms to improve the washing performance. Two of the arms pivot and rotate back and forth to sprinkle water, and thoroughly clean every corner without dead zones.
Auto Open Door
Let us get the door for you, enjoy cupboard-dry dishes ready for use with LG's Auto Open Door. Automatic opening of the door allows excess steam to escape for odour-free, carefree drying.
Status Indicator
With the addition of the status indicator, light is projected onto the floor while the cycle of the dishwasher is running, the light will then turn off whe the cycle is complete. Now, you can simply see the cycle status, no more guessing games.
Inverter Direct Drive™
A motor designed with your peace and quiet in mind. LG's Inverter Direct Drive motor carefully controls water circulation and spray intensity for long-lasting, quiet performance. .
ThinQ™ WiFi
With the LG ThinQ App, we're always developing ways to meet your needs. Overseeing product status and even download new dish programmes. With personalised settings, select different cleaning options tailored to your pots, pans or glasses. After every 30 cycles, the illuminated indicator will remind you to run the cleaning program and with Smart Diagnosis™ solve any problem quickly, we will notify you with suggestions for simple solutions and next steps.
| Type | Fully Integrated Dishwasher |
| Brand | LG |
| Model | DB476TXS Series 8 TrueSteamâ„¢ QuadWash Proâ„¢ |
| Also known as: | DB476TXS |
| EAN: | 8806096108475 |
| TrueSteam | |
| QuadWash | |
| Auto Open Door | |
| Status Indicator | |
| Inverter Direct Drive | |
| ThinQ WiFi |
| Appliance placement | Fully built-in |
| Product size | Full size (60 cm) |
| Custom panel-ready | Yes |
| Door colour | Not applicable |
| Built-in display | Yes |
| Inner components colour | Grey |
| Product height | Standard (80 - 85 cm) |
| Control panel colour | Silver |
| Control type | Touch |
| Display type | LED |
| Display digits | 4 digits |
| Concealed heating element | Yes |
| Water fill | Cold |

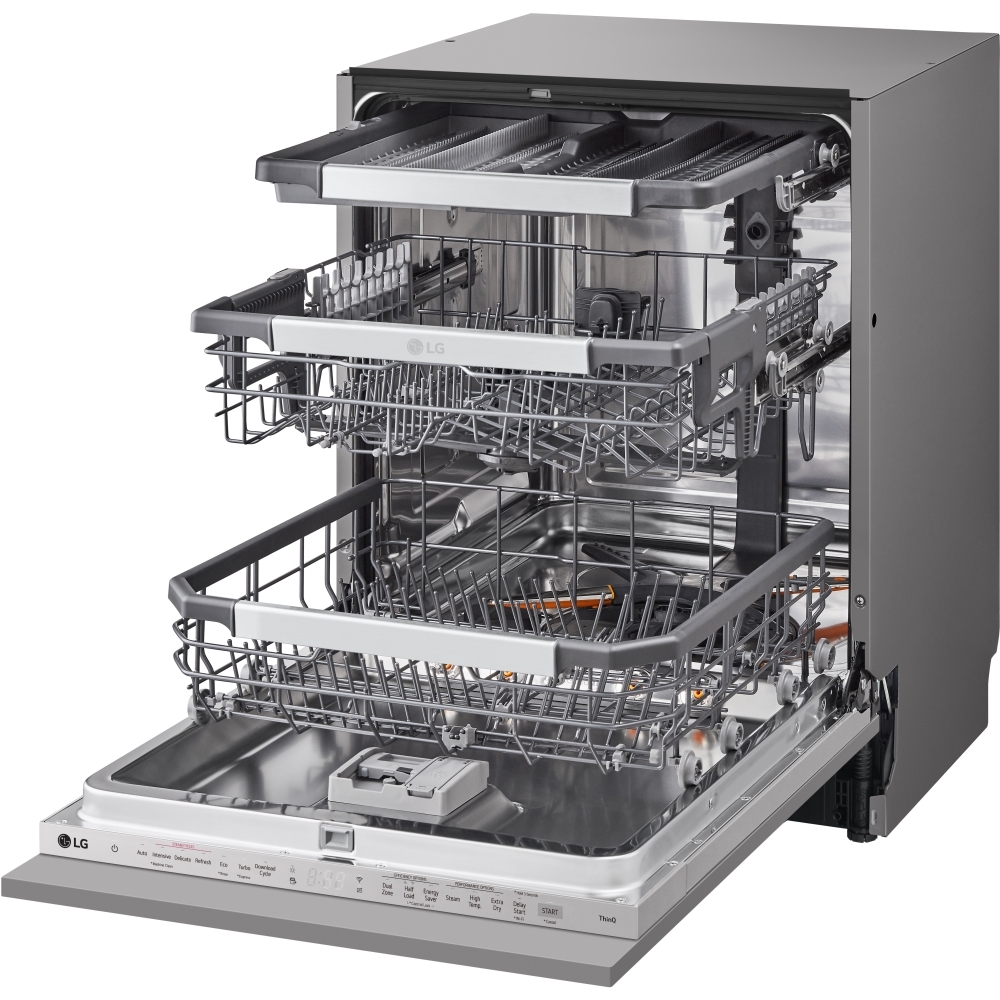

| Number of baskets | 3 basket(s) |
| Baskets adjustable placement | Lower, Upper |
| Upper basket adjustable height | Yes |
| Upper basket adjustable height levels | 3 |
| Upper basket rack | Foldable |
| Maximum dish size (upper basket) | 165 mm |
| Lower basket rack | Foldable |
| Lower basket rack type | Double |
| Maximum dish size (lower basket) | 300 mm |
| Cutlery compartment type | Drawer |
| Cutlery compartment colour | Grey |
| Additional cutlery tray | Yes |
| Included number of shelves | 3 |
| Tub material | Stainless steel |
| Languages | English |
| Door hinge | Sliding |
| Self-balancing hinge | Yes |
| Control panel type | English |
| Electronic control | Yes |
| Adjustable upper basket cup racks | Yes |
| Lower basket folding tines | 8 |
| Number of place settings | 14 place settings |
| Number of washing programs | 10 |
| Noise emission class | B |
| Noise level | 43 dB |
| Dishwashing programs | Auto, Delicate, Download Cycle, Eco, Express, Intensive, Maintenance wash, Rinse, Steam, Turbo |
| Temperature (max) | 80 °C |
| Cycle time | 299 min |
| AquaStop function | Yes |
| Overflow protection | Yes |
| Drying system | Condensation |
| Automatic programs | Yes |
| Number of temperature settings | 2 |
| Cycle time (quick washing program) | 78 min |
| Integrated timer | Yes |
| Delayed start timer | Yes |
| Delay start (min) | 1 h |
| Delay start (max) | 12 h |
| Countdown timer | Yes |
| Left-on mode duration | 10 min |
| Extra dry | Yes |
| Glass protection | Yes |
| Overflow protection system | AquaStop |
| Downloadable additional programs | Yes |
| Half-load | Yes |
| Auto power off | Yes |
| Inverter technology | Yes |
| Number of spray zones | 2 |
| Tablet detergent function | Yes |
| Powder detergent function | Yes |
| Motor type | Brushless |
| Dirt sensor | Yes |
| Eco program duration | 299 min |
| Automatic door opening | Yes |
| Multitab option | Yes |
| Adjustable rinse dosage | Yes |
| Child lock | Yes |
| Adjustable feet | Yes |
| Feet adjustment | 60 mm |
| Floor indicator light | Yes |
| Remaining time indication | Yes |
| Buzzer | Yes |
| LED backlight | Yes |
| Customizable interior | Yes |
| Backlight colour | White |
| Salt indicator | Yes |
| Rinse aid indicator | Yes |
| LED program stage indicator | Yes |
| Smartphone/tablet remote support | Yes |
| Apps supported | LG ThinQ |
| Apps functions | Favourite programs, Notifications, Remote diagnostics, Remote monitoring |
| Wi-Fi controlled | Yes |
| Feet adjustment type | Front & Rear |
| Feet extension (min) | 60 mm |
| Energy efficiency class | A |
| Water consumption per cycle | 9.5 L |
| Energy consumption per 100 cycles | 54 kWh |
| Energy efficiency scale | A to G |
| Energy consumption per cycle | 0.543 kWh |
| Power consumption (off) | 0.49 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Width | 598 mm |
| Depth | 554 mm |
| Height | 815 mm |
| Weight | 45 kg |
| Installation compartment width | 605 mm |
| Installation compartment depth | 600 mm |
| Installation compartment height | 880 mm |
| Installation compartment height (max) | 880 mm |
| PSTI certified | Yes |
| Extra Drying function | Yes |
| Furniture door required | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| LG technologies (dish washing) | Auto Open Dry, DirectDrive Motor™, Dual Zone Wash, EasyRack™ Plus, Height Adjustable 3rd Rack, Inverter Direct Drive™, QuadWash™, Smart Rack+™, Smart diagnosis, ThinQ™, TrueSteam™, Turbo cycle |
| Package dimensions (WxDxH) | 683 x 654 x 840 mm |
| Package volume | 375213 cm³ |
| Package width | 683 mm |
| Package depth | 654 mm |
| Package height | 840 mm |
| Package weight | 48.9 kg |
| European Product Registry for Energy Labelling (EPREL) code | 2009194 |
| Dimensions (WxDxH) | 598 x 554 x 815 mm |
| Number of cycles | 10 |
| Quick wash | Yes |
| Installation compartment dimensions (WxDxH) | 605 x 600 x 880 mm |
| Country of origin | South Korea |
| Spare part retention | 7 year(s) |
| Required tools | Standard tool box |
| Steam Clean function | Yes |
Customers also bought
Loading
Fully Integrated Dishwashers

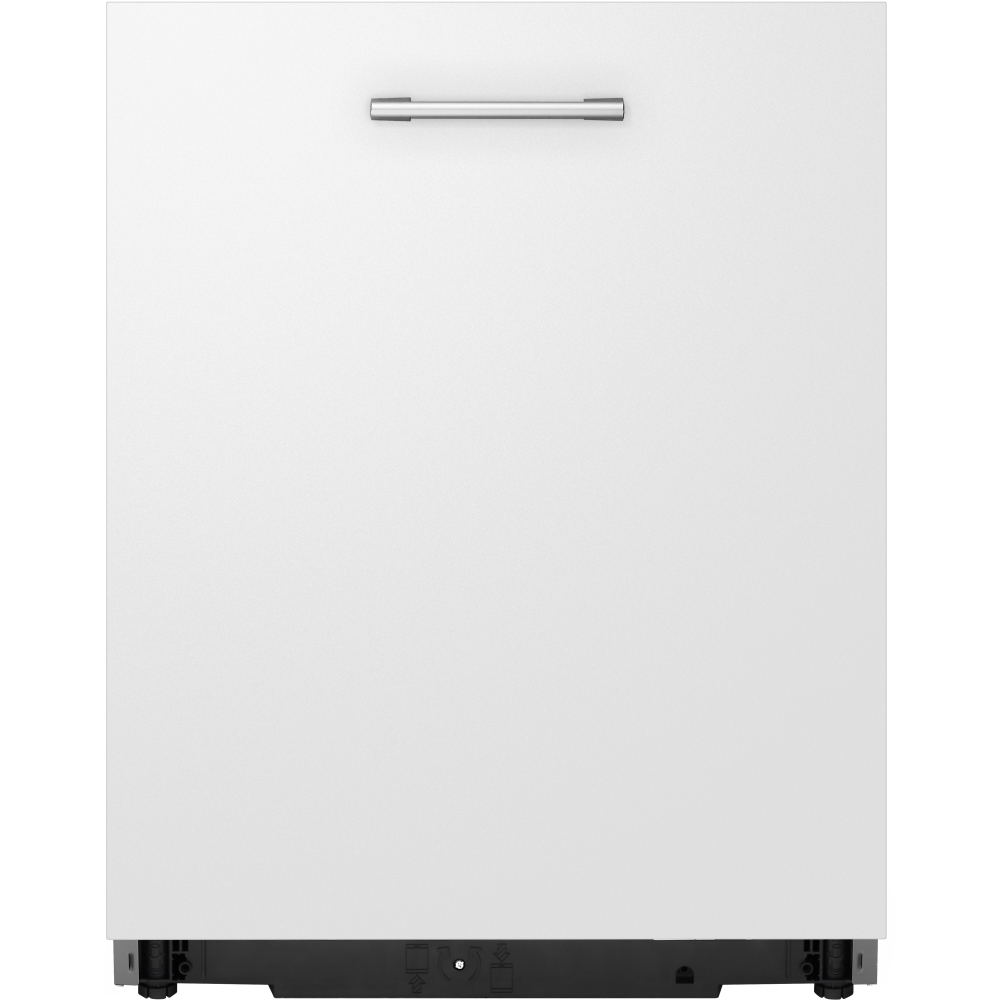

A fully integrated dishwasher is built into your cabinetry, completely concealing the appliance. The controls can be found on the inside edge of the door. This is the most effective way to achieve a seamless kitchen aesthetic. All fully integrated dishwashers will need a full-height furniture door and plinth for installation - if you're buying a replacement, it's likely you already have these in place.
