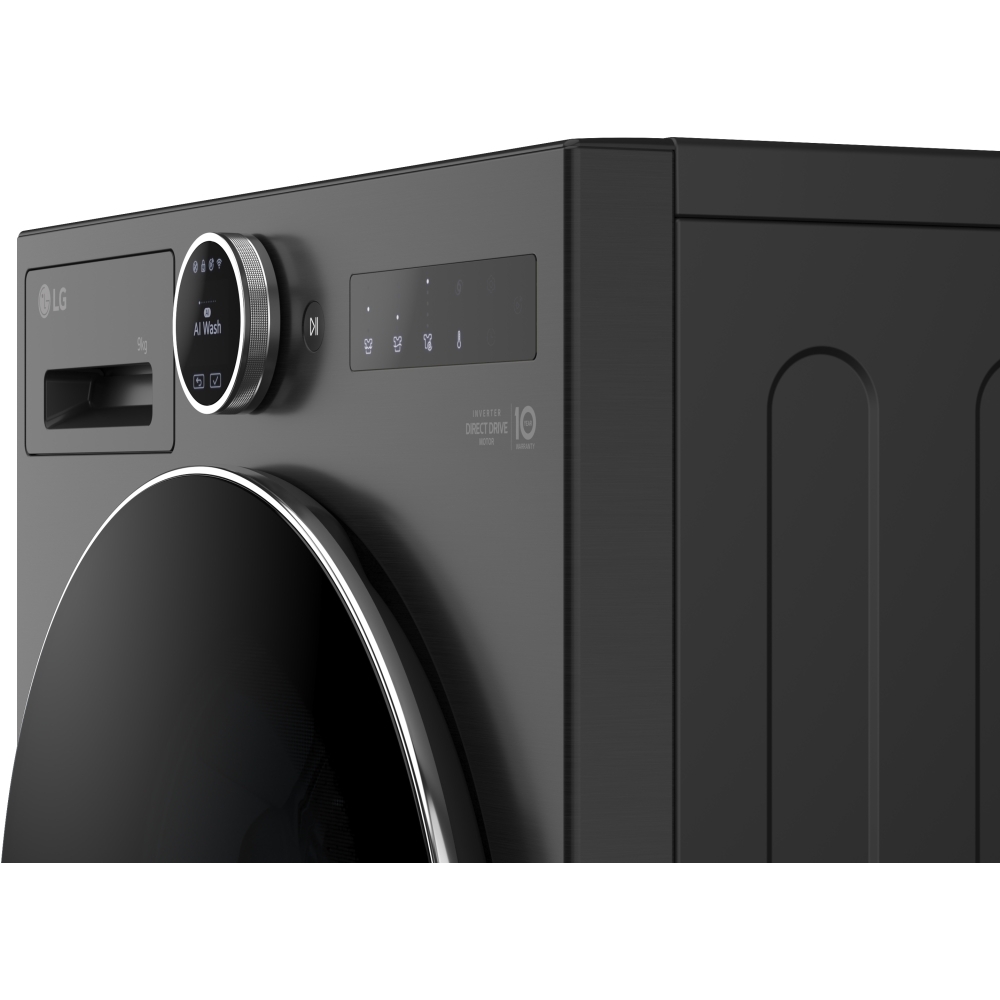

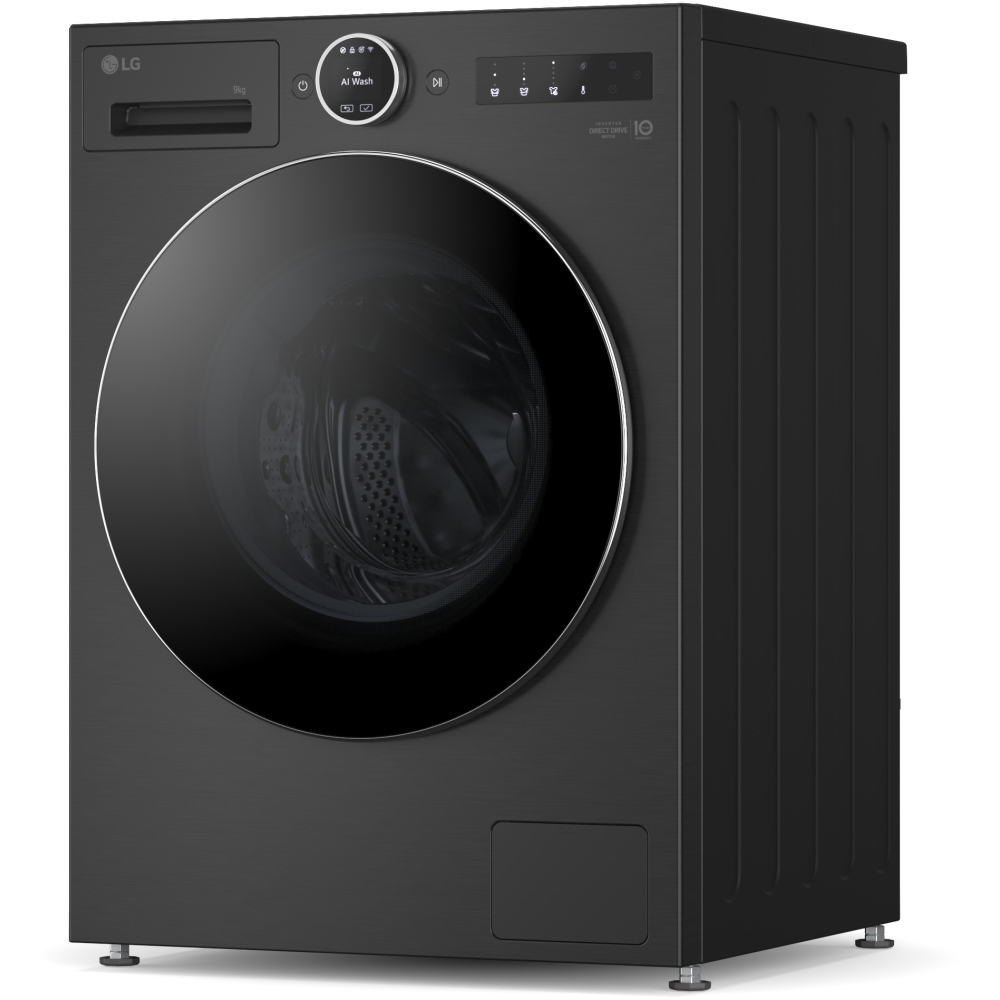

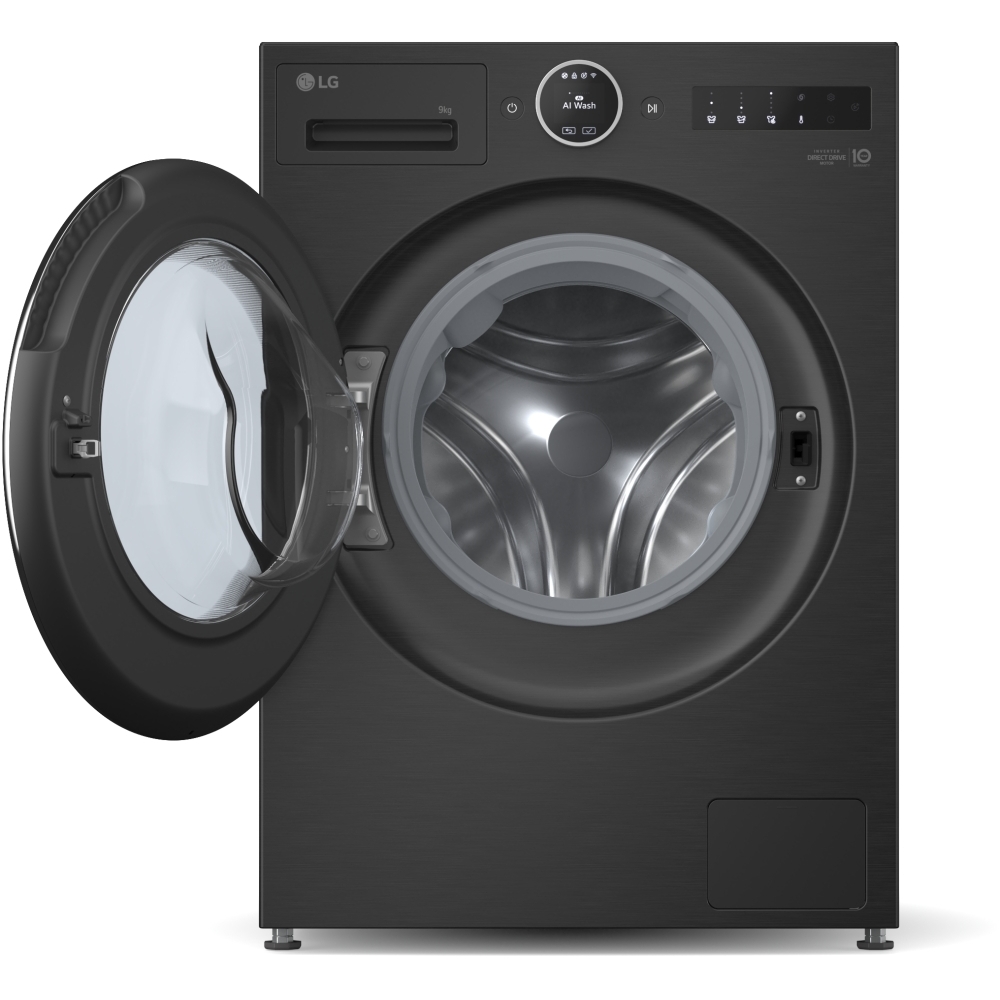

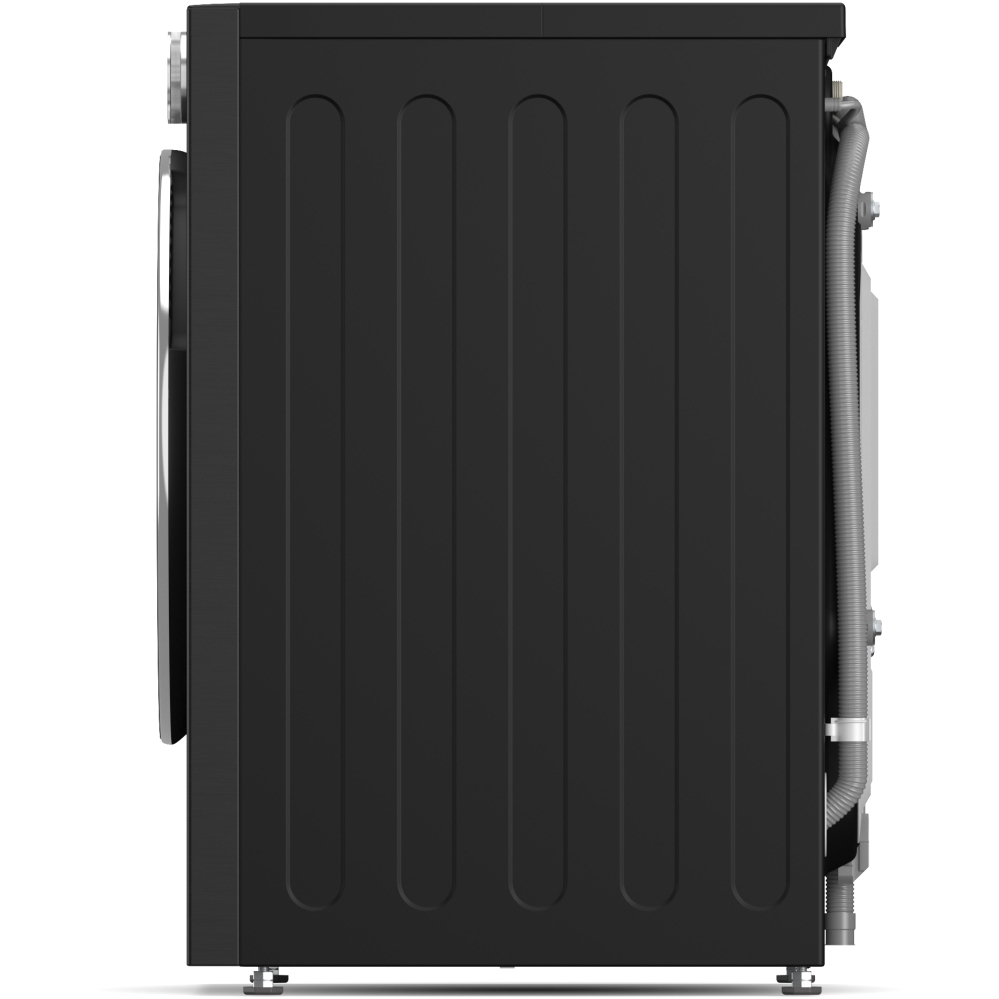

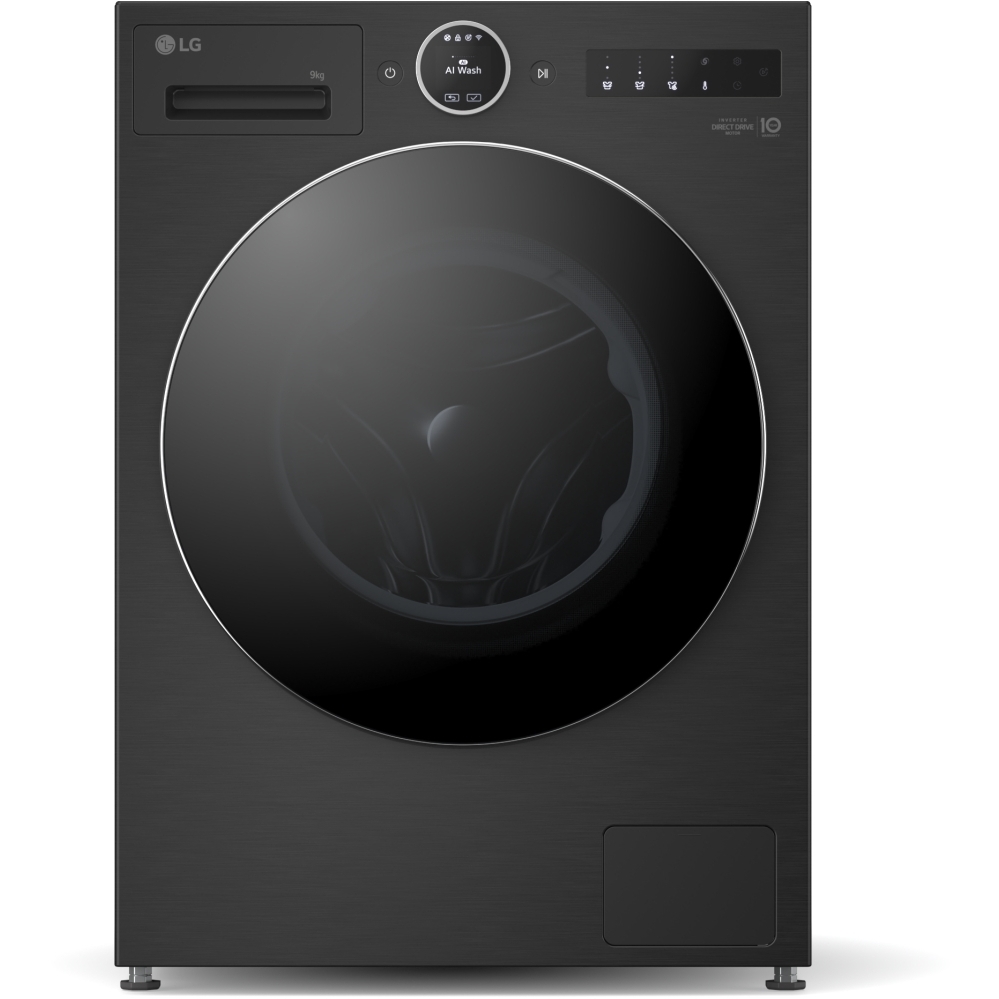

LG F4X9009TBC Series 9 AI Direct Drive™ Washing Machine
(Discontinued)
This item is not currently available
Service that goes further
- Product code: F4X9009TBC
- Capacity (kg) - 9
- Spin Speed (rpm) - 1350
- VX Display
- TurboWash360
- Warranty - 5 years parts and labour
Product Dimensions (HxWxD) (mm) - 850 x 600 x 620 (depth excludes knobs and door)
Energy
Rating
Capacity and Efficiency
This washer features a 9kg capacity with A-55% high efficiency rating, designed to simplify processes and components in an eco-conscious manner.
Environmental Care Features
The Microplastic care cycle effectively minimizes the release of microplastics during washing. Steam+™ technology bathes your clothes in sanitizing steam to reduce allergens by up to 99.99%, with an additional Wrinkle Care option that helps reduce creases and saves time on ironing.
Intelligent Fabric Detection and Care
AI DD intelligently detects fabric types and selects the optimal washing pattern to ensure your clothes remain durable. The AI Wash™ cycle is a dedicated separate cycle that enables customized washing using the best motion and stroke depending on the fabric, helping prevent fabric damage while maintaining washing power. AI Direct Drive™ technology, enhanced by deep-learning AI, analyzes wash patterns from big data, classifies fabrics into softness levels, and provides 6 Motions through precise motor control to maximize clothes protection and longevity.
TurboWash™ 360
Your laundry can be thoroughly cleaned in just 39 minutes without compromising fabric protection. The 3D multi-nozzles shoot water in four directions to ensure every inch of your laundry gets washed. The Inverter Pump changes the power of the water sprayed depending on the level of clean needed. By maximizing the dynamic between spray power, detergent, and cycle motion, this washer reduces laundry time to just 39 minutes, saves energy by 28%, and reduces clothing damage by 14%.

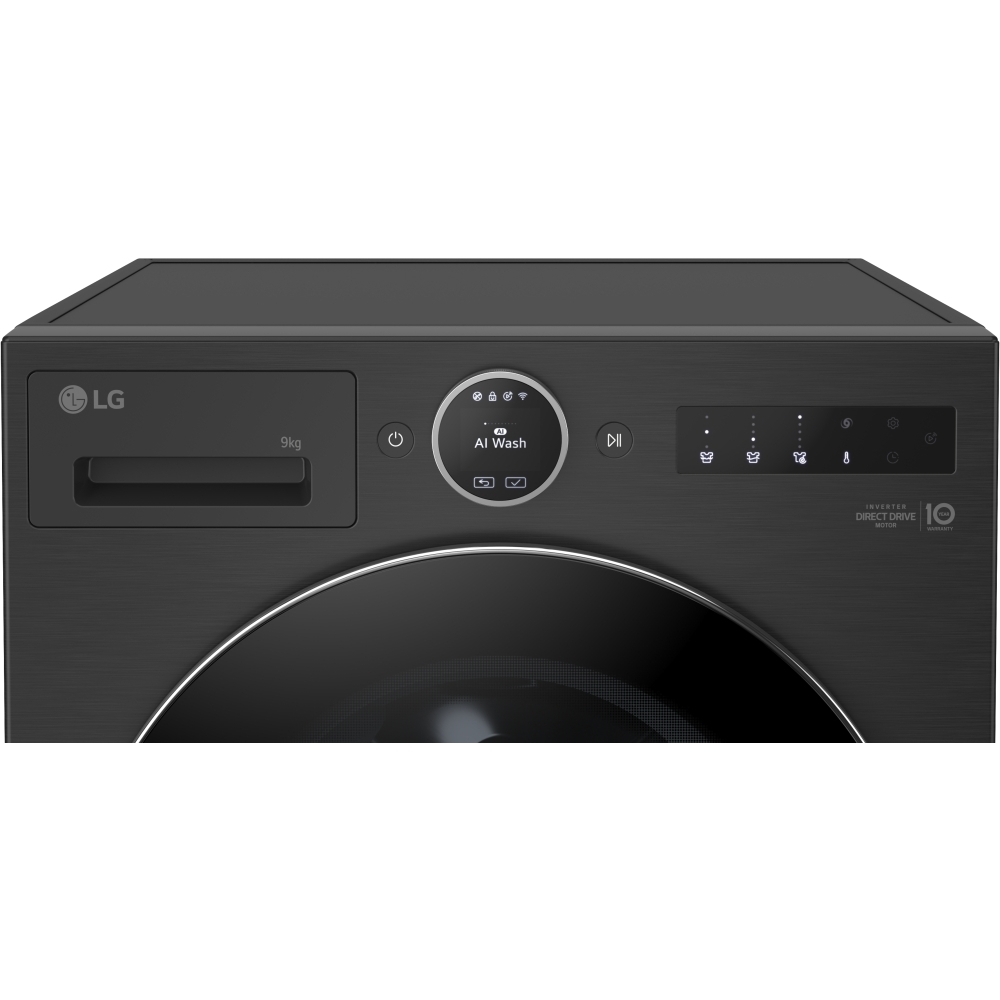

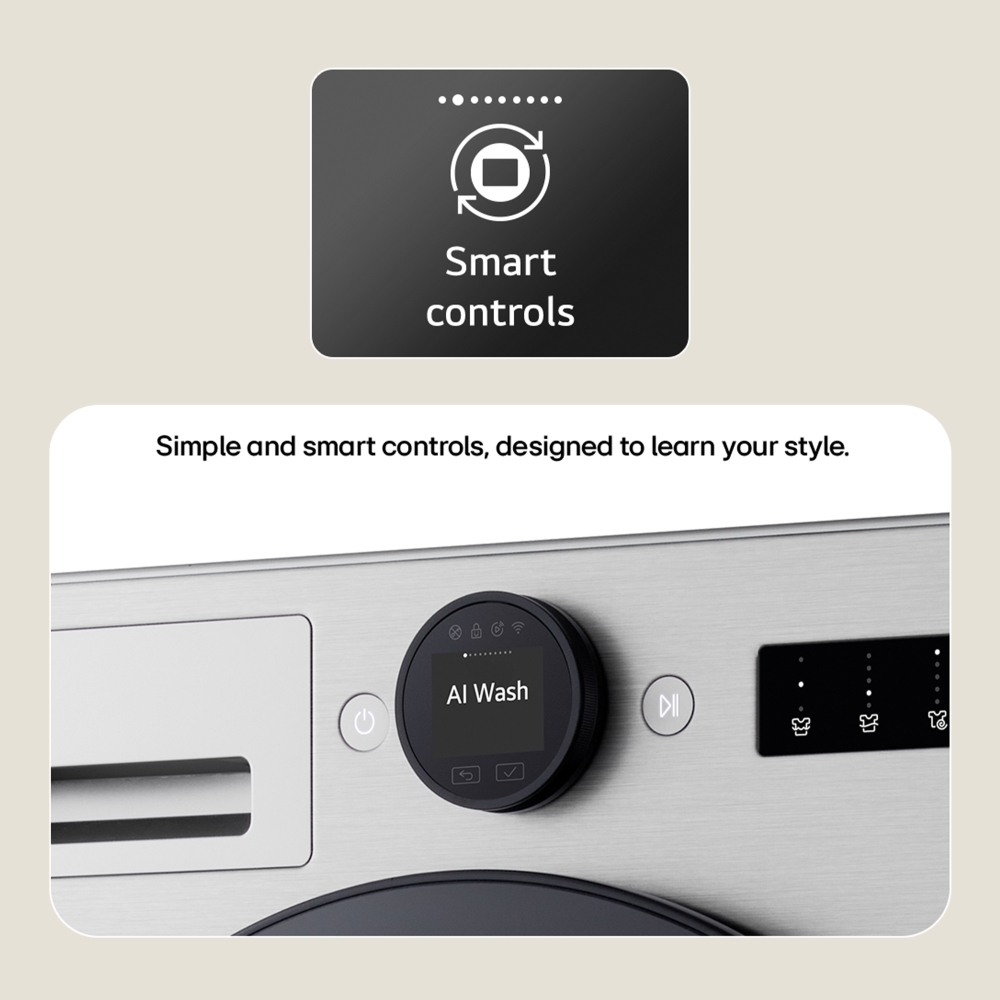

VX Display with LCD Control
The LCD Display Knob provides a wealth of information at every turn with an intuitive digital dial control. It offers descriptions of each setting, helpful prompts, status updates, and remaining cycle time to help guide your laundry experience.
ThinQ™ WiFi Connectivity
With LG ThinQ™ technology, you can operate your laundry remotely and download additional cycle settings. Interact with your washing machine and access the latest innovations, including Google Assistant compatibility.
| Type | Washing Machine |
| Brand | LG |
| Model | F4X9009TBC Series 9 AI Direct Drive™ |
| Also known as: | F4X9009TBC |
| EAN: | 8806096105191 |
| VX Display | |
| TurboWash360 | |
| Steam+ | |
| AI Wash | |
| AI Direct Drive | |
| ThinQ WiFi |
| Appliance placement | Freestanding |
| Loading type | Front-load |
| Product colour | Black |
| Built-in display | Yes |
| Control type | Rotary, Touch |
| Door hinge | Left |
| Colour name | Matte Black |
| Inverter technology | Yes |
| Display type | LCD |
| Display illumination | Yes |
| Illumination colour | White |

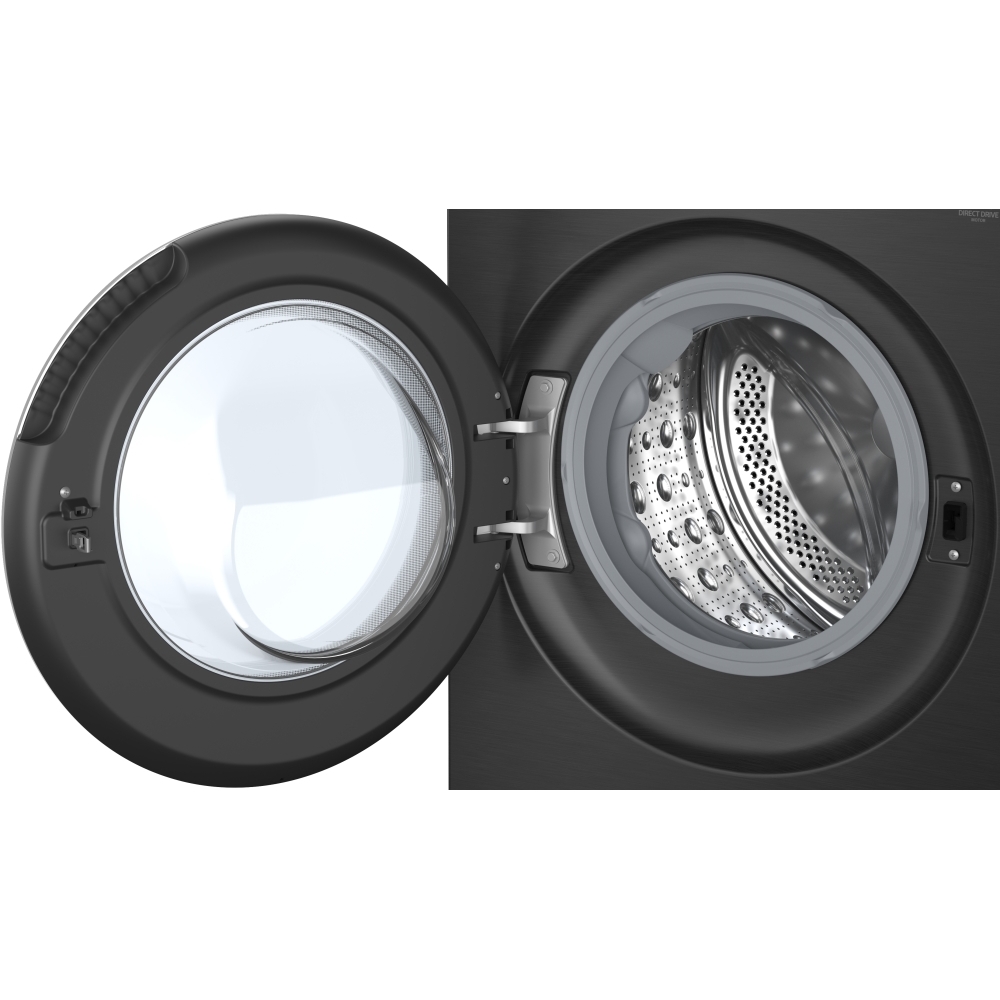

| Door opening | Side opening |
| Door opening angle | 150° |
| Door colour | Black |
| Door type | Tempered glass |
| Rim colour | Chrome |
| Drum material | Stainless steel |
| Tub material | Polyurethane |
| Drum type | Embossing |
| Cord length | 1.9 m |

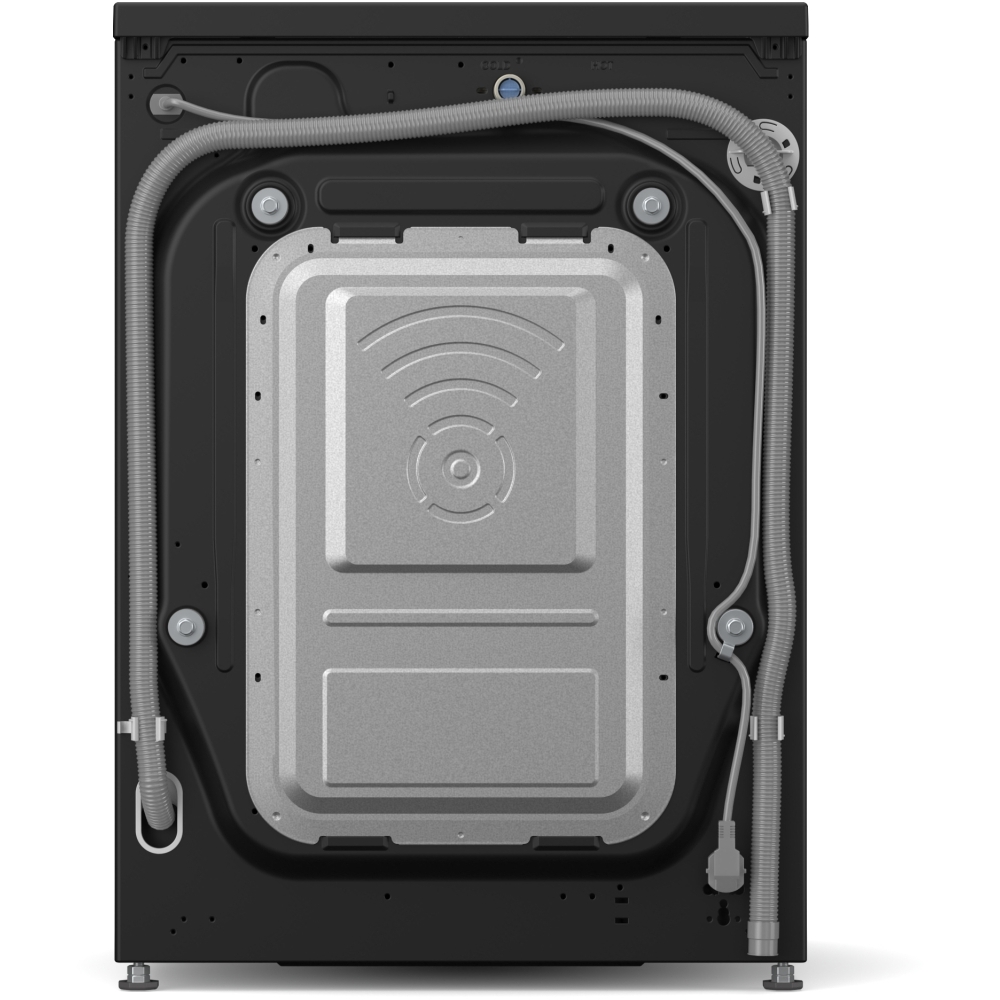

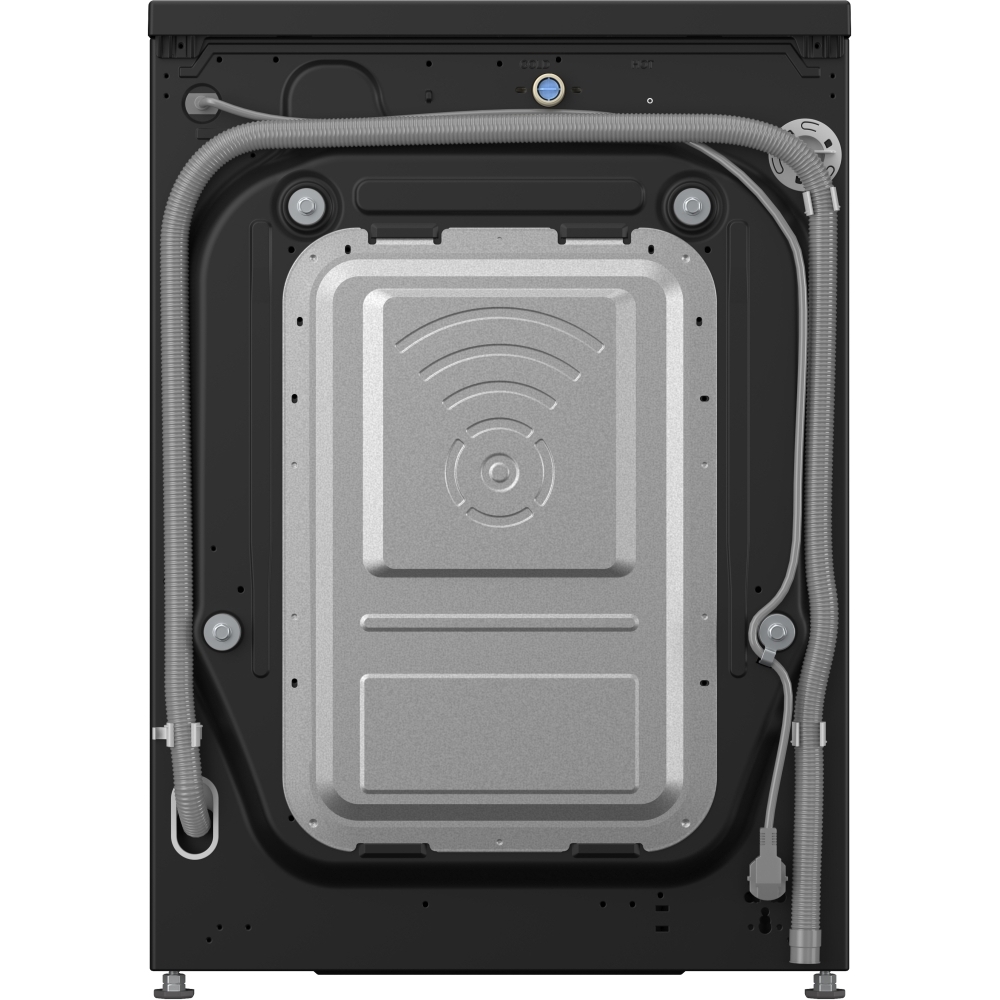

| Inlet hose length | 1.3 m |
| Outlet hose length | 1.75 m |

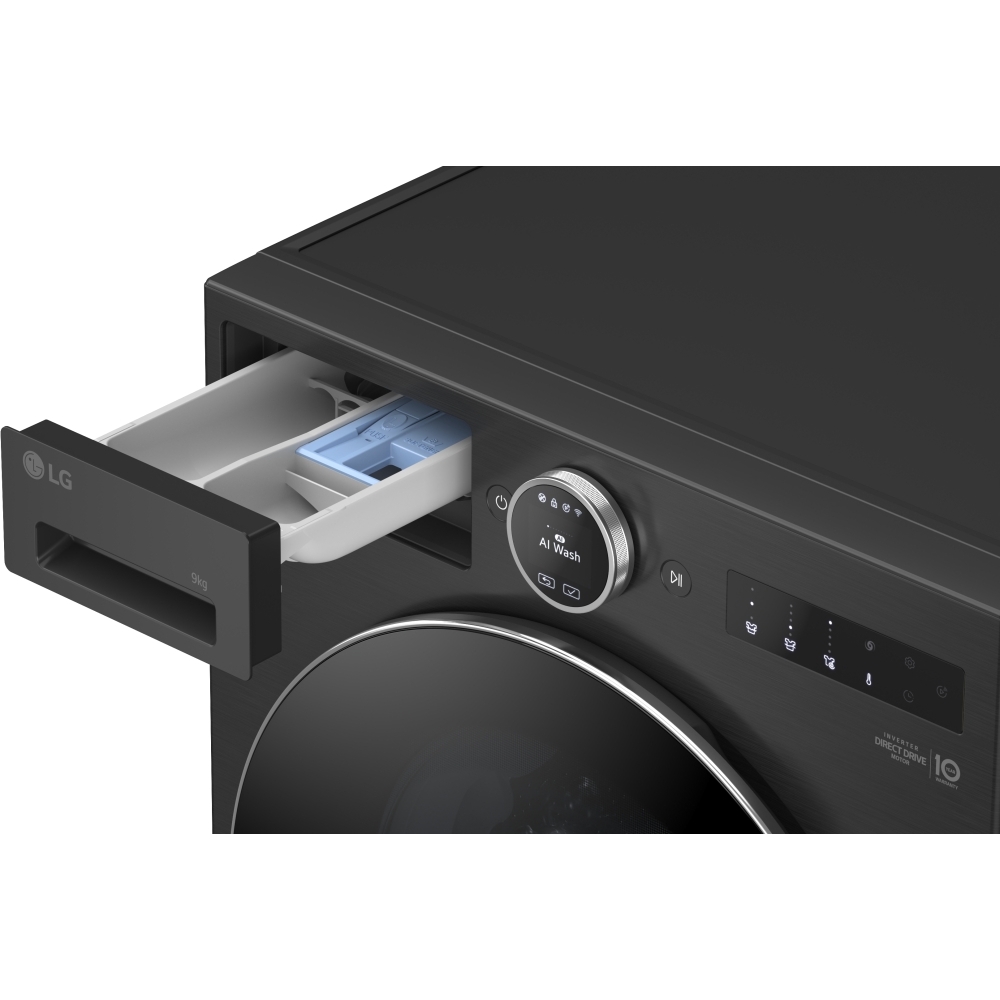

| Dispenser tray type | 3-way |
| Drum volume | 68 L |
| Water fill | Cold |
| Motor type | Beltless |
| Viewing window | Yes |
| Country of origin | China |
| Rated capacity | 9 kg |
| Maximum spin speed | 1350 RPM |
| Spin-drying class | B |
| Number of washing programs | 24 |

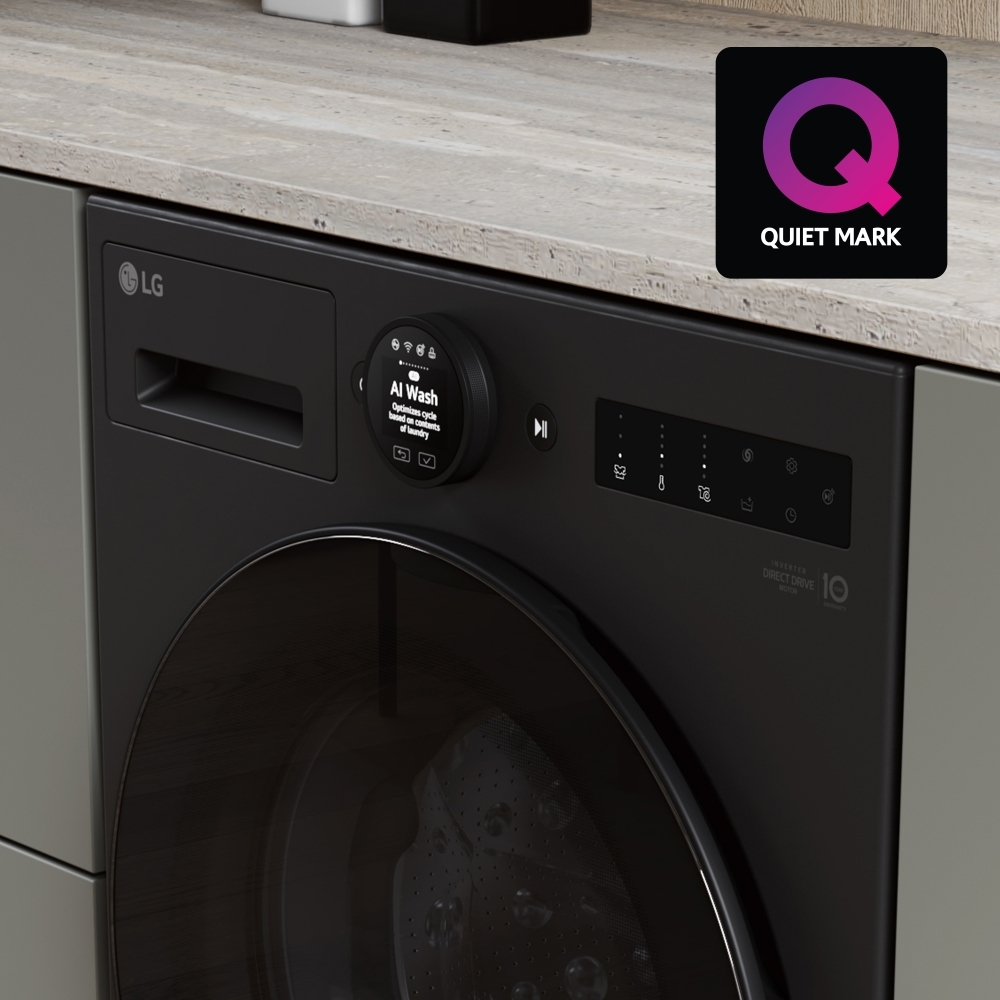

| Noise emission class | A |
| Noise level (spin) | 72 dB |
| Noise level (wash) | 56 dB |
| Delayed start timer | Yes |
| Washing programs | Baby care, Bedding, Blouse/shirt, Cloudy day, Cold, Cotton, Delicate/silk, Down wear/duvet, Easy care, Eco 40-60°C, Hand/wool, Microfiber, Mix, Outdoor, Quick, Quick 14min, Rinse & spin, Silent, Smart AI, Spin/drain, Towel |
| Overflow protection | Yes |
| Load balancing system | Yes |
| Foam control system | Yes |
| Delay start (max) | 19 h |
| Delay start (min) | 1 h |
| Timer | Yes |
| Cycle time (max) | 228 min |
| Cycle time (quick washing program, small load) | 14 min |
| Cycle time (quick washing program) | 39 min |
| Rinse hold | Yes |
| Rinse Plus function | Yes |
| Rinsing effectiveness | 5 g/kg |
| Number of rinse selections | 5 |
| Custom program | Yes |
| Adjustable spin speed | Yes |
| Minimum spin speed | 400 RPM |
| Automatic load recognition | Yes |
| Self adjusting water level | Yes |
| Residual moisture | 53.9% |
| Adjustable temperature | Yes |
| Easy iron function | Yes |
| Add garment (pause) function | Yes |
| Menu languages | English |
| Smartphone/tablet remote support | Yes |
| Left-on mode duration | 10 min |
| Anti-Crease function | Yes |
| Fast+ function | Yes |
| Sterilization function | Yes |
| AI control | Yes |
| AI wash | Yes |
| Minimum water flow pressure | 50 kPa |
| Maximum water flow pressure | 800 kPa |
| Wi-Fi controlled | Yes |
| Apps supported | LG ThinQ |
| Apps functions | Downloadable additional programs, Notifications, Remote diagnostic, Remote monitoring, Remote start |
| Cycle time (40°C, partial load) | 81 min |
| No spin | Yes |
| Child lock | Yes |
| Self-cleaning | Yes |
| Remaining time indication | Yes |
| Sensor program selection | Yes |
| Auto diagnostic | Yes |
| TurboWash | Yes |
| Auto-restart | Yes |
| Overdosage indication | Yes |
| Over voltage protection | Yes |
| Drum Clean | Yes |
| Powder detergent function | Yes |
| Error message indicator | Yes |
| Water supply lacking indicator | Yes |
| Electrical component fault indicator | Yes |
| LED program stage indicator | Yes |
| Door open alarm | Yes |
| Buzzer | Yes |
| Automatic locking | Yes |
| Stackable | Yes |
| Adjustable feet | Yes |
| Feet adjustment | 20 mm |
| On/off button | Yes |
| Number of adjustable feet | 4 |
| Machine care | Yes |
| Feet adjustment type | Front & Rear |
| Feet extension (min) | 20 mm |
| LG technologies (clothes care) | 6 Motion DD, AI DD™, Allergy Care, Inverter Direct Drive Motor, Pause & Add, Smart Pairing, Speed 14, Stainless steel lifters, Steam+™, ThinQ™, TurboWash™360 |
| Energy efficiency class | A |
| Energy consumption per 100 cycles | 22 kWh |
| Water consumption per cycle | 45 L |
| Energy efficiency scale | A to G |
| Energy consumption washing per cycle | 0.222 kWh |
| Power consumption (typical) | 2 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Power consumption (left-on) | 2 W |
| Power plug type | Type G |
| Energy efficiency index (EEI) | 23.3 |
| Washing efficiency index (EU 2017/1369) | 1.031 |
| Width | 600 mm |
| Depth | 620 mm |
| Height | 850 mm |
| Weight | 68 kg |
| Depth with door closed | 620 mm |
| Depth with door open | 1100 mm |
| Installation compartment width | 640 mm |
| Installation compartment depth | 720 mm |
| Installation compartment height | 855 mm |
| Door opening diameter | 300 mm |
| Gross weight | 71.8 kg |
| Manual | Yes |
| Manual languages | English |
| Product languages | German, Dutch, English, French, Italian |
| Package width | 660 mm |
| Package depth | 660 mm |
| Package height | 890 mm |
| Package weight | 71.8 kg |
| Package type | Box |
| Package dimensions (WxDxH) | 660 x 660 x 890 mm |
| Dimensions (WxDxH) | 600 x 620 x 850 mm |
| Power requirements | Mains |
| Category | Washing Machine |
| Energy consumption | 22 kWh |
| Hand wash | Yes |
| Indication light | Yes |
| Number of programs | 24 |
| Pause function | Yes |
| Spin speed | 1400 RPM |
| Rated capacity (washing) | 9 kg |
| Model year | 2024 |
| Required tools | Standard tool box |
| Spare part retention | 7 year(s) |
| Washing class | A |
| Sportswear program | Yes |
| Net weight | 68 kg |
| Eco program duration | 228 min |
| PSTI certified | Yes |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Like most modern washing machines, this one is cold fill only. Some older washers also have a hot water intake, but in reality, little hot water ever gets into these machines on most washes. This is because hot water cools rapidly in household water pipes, and by the time it starts to run hot the washing machine has almost finished filling. This is particularly true nowadays because modern washing machines use a lot less water than ever before.
