Elica LANE-80-BLK
Canopy Cooker Hood, Black, B Rated
Choose your colour
Service that goes further
- Product code: LANE-80-BLK
- Extraction Rate (m³/h) - 550
- Extraction Type - Ducted/Recirculating
- High performance hood upto to 650m/hr
- Super easy installation for built in or mantle application
- Warranty - 2 years parts and labour
Product Dimensions (HxWxD) (mm) - 322 x 714 x 283
B
Energy
Rating
LANE-80-BLK PRF0165834 Built In cooker hood 80 cm Black
EAN 8020283049253
To recirculate requires charcoal filter CFC0140343 or regeneratable filter CFC0162221
Also available in White or Stainless Steel finishes, 80 cm or 60 cm widths.
Equipped with a patented mounting system. Through the use of two clips on the sides of the hood and with only two screws, it can be installed into the cabinet in less than one minute.
A high performance hood which reaches good performance thanks to the perimeter aspiration that multiplies the suction surface.

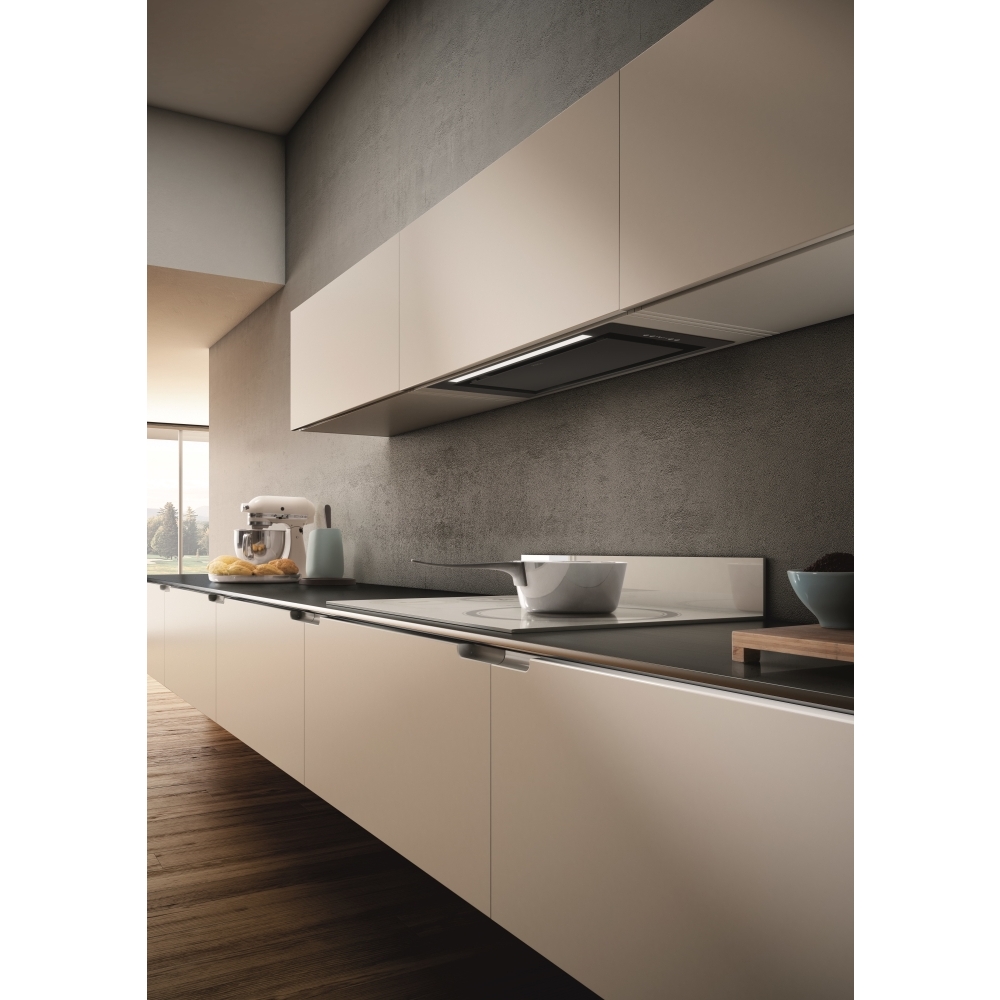

The Lane is designed to be installed inside the cabinet, being invisible, and providing a high level performance and energy efficiency. Blends perfectly with minimalist design and offers excellent value for money.
| Type | Canopy Cooker Hood |
| Brand | Elica |
| Model | LANE-80-BLK |
| Also known as: | LANE80BLK |
| EAN: | 8020283049253 |
| High performance hood upto to 650m/hr | |
| Super easy installation for built in or mantle application | |
| Fits into a shallow 300mm deep cabinet | |
| Suitable for duct out extraction or recirculation with additional filters | |
| Quick and easy maintenance with washable filters |
| Maximum extraction power | 550 m³/h |
| Type of extraction | Ducted/Recirculating |
| Fluid dynamic efficiency class | B |
| Lighting efficiency class | A |
| Grease filtering efficiency class | D |
| Number of speeds | 3 |
| Noise level | 65 dB |
| Boost position air extraction power | 650 m³/h |
| Intensive speed | Yes |
| Noise level (low speed) | 49 dB |
| Noise level (high speed) | 65 dB |
| Minimum distance from electric hob | 500 mm |
| Minimum distance from gas hob | 750 mm |
| Type | Built-in |
| Product colour | Black, Grey |
| Control type | Touch |
| Exhaust location | Top |
| Exhaust connection diameter | 150 mm |
| Grease filter type | Aluminium |
| Number of filters | 1 pc(s) |
| Dishwasher proof filter | Yes |
| Removable filter | Yes |
| Anti-odor filter | Yes |
| Washable filter | Yes |
| Bulb power | 7 W |
| Number of bulbs | 1 bulb(s) |
| Bulb type | LED |
| Colour temperature | 3500 K |
| Lighting position | Front |
| Energy efficiency class | B |
| Annual energy consumption | 69 kWh |
| Motor power | 257 W |
| Width | 714 mm |
| Depth | 283 mm |
| Height | 322 mm |
| Height (max) | 322 mm |
| Weight | 1.13 kg |
| Package width | 774 mm |
| Package depth | 340 mm |
| Package height | 388 mm |
| Package weight | 1.32 kg |
| Airflow | 650 m³/h |
| Touch control | Yes |
| Country of origin | Italy |
| Noise level (max) | 65 dB |
| Pipe/tube diameter | 150 mm |
| Net weight | 1.32 kg |
