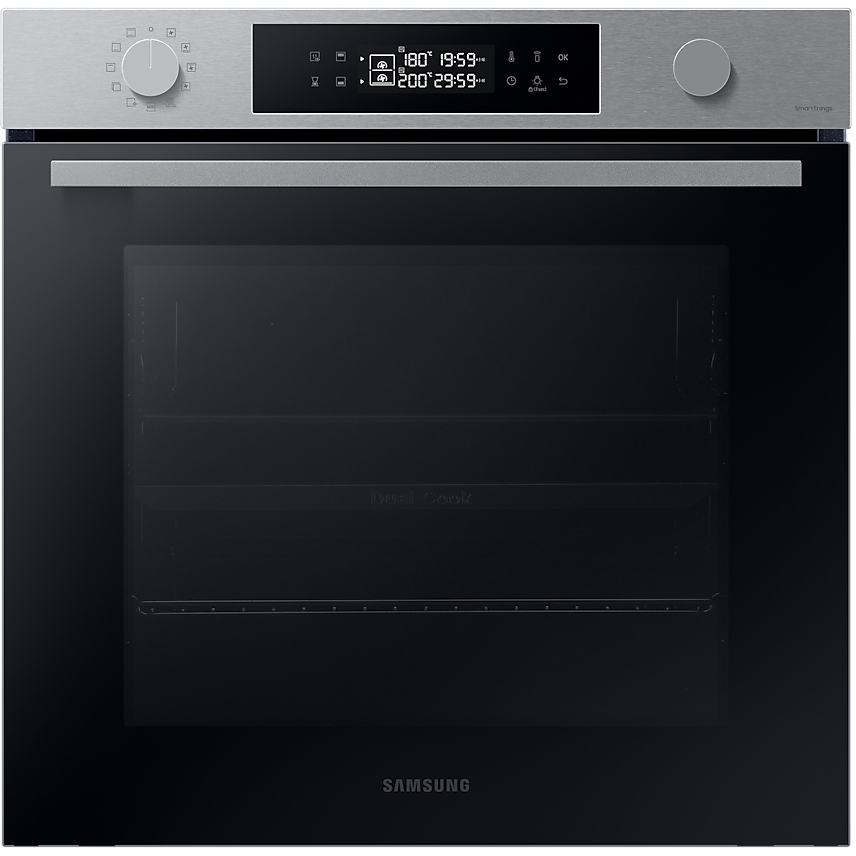

Samsung NV7B4430ZAS Series 4
Smart Dual Cook Oven
(Discontinued)
This item is not currently available
Service that goes further
- Product code: NV7B4430ZAS
- Capacity (Usable Litres) - 76
- Electrical Connection - Hard-wired
- Dual Cook
- 25% Energy Saving - Reduce energy use by up to 25% by only using the top half
- Warranty - 5 years parts and labour
Product Dimensions (HxWxD) (mm) - 596 x 596 x 570
Energy
Rating
| Type | Smart Dual Cook Oven |
| Brand | Samsung |
| Model | NV7B4430ZAS Series 4 |
| Also known as: | NV7B4430ZAS |
| EAN: | 8806094337044 |
| Dual Cook - Cook two different dishes at different temperatures, all at the same time | |
| 25% Energy Saving - Reduce energy use by up to 25% by only using the top half | |
| Pyrolytic Cleaning - No more scrubbing, as grease and dirt are reduced to ash for easy cleaning | |
| Smart Things Cooking - Helpful notifications, energy monitoring and remote engineer assistance |
| Number of ovens | 1 |
| Oven size | Large |
| Oven type | Electric |
| Total oven(s) interior capacity | 76 L |
| Total oven power | 3950 W |
| Oven net capacity | 76 L |
| Grill | Yes |
| Full surface grill | Yes |
| Convection cooking | Yes |
| Self-cleaning | Yes |
| Top heating + Convection (single mode) | Yes |
| Bottom heating + Convection (single mode) | Yes |
| Oven thermostat range | 30 - 250 °C |
| Grill type | Variable dual grill |
| Grill power | 1600 W |
| Convection power | 2400 W |
| ECO mode | Yes |
| Electronic ignition | Yes |
| Dual Cook Technology | Yes |
| Number of auto cooking programs | 50 |
| Closed door grilling | Yes |
| Cleaning type | Pyrolytic + Steam |
| Appliance placement | Built-in |
| Product colour | Black, Stainless steel |
| Control type | Rotary, Touch |
| Built-in display | Yes |
| Interior material | Enamelled ceramic |
| Control position | Front / Top front |
| Handle colour | Stainless steel |
| Display type | LED |
| Door hinge | Down |
| Door material | Glass, Stainless steel |
| Oven door opening | Drop down opening |
| Number of glass door panels | 4 |
| Wi-Fi controlled | Yes |
| Integrated clock | Yes |
| Clock type | Electronic |
| Timer type | Digital |
| Timer modes | Cooking time, End cooking time |
| Apps supported | Samsung SmartThings |
| Child lock | Yes |
| Energy consumption (conventional) | 1.05 kWh |
| Energy consumption (forced convection) | 0.71 kWh |
| Energy efficiency scale | A+++ to D |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 Hz |
| Energy efficiency index (EEI) | 81.6 |
| Power connection type | Hard-wired |
| Energy consumption (standby) | 1 kWh |
| Power plug type | Hard Wired |
| Energy efficiency class (old) | A+ |
| Interior light | Yes |
| Lamps quantity | 2 lamp(s) |
| Lamp type | Halogen |
| Illumination location | Side, Top |
| Bulb power | 25 W |
| Bulb power 2 | 40 W |
| Installation compartment width | 560 mm |
| Installation compartment depth | 550 mm |
| Installation compartment height | 600 mm |
| Width | 596 mm |
| Depth | 570 mm |
| Height | 596 mm |
| Weight | 41.4 kg |
| Interior dimensions (W x D x H) | 560 x 549 x 579 mm |
| Installation compartment height (min) | 590 mm |
| Package width | 694 mm |
| Package depth | 660 mm |
| Package height | 660 mm |
| Package weight | 47.3 kg |
| Baking tray | Yes |
| Number of baking trays | 2 |
| Telescopic rail included | Yes |
Important Product Information: This is a built in Single Oven; it can be built in at eye-level or underneath a worktop.
One oven, three ways

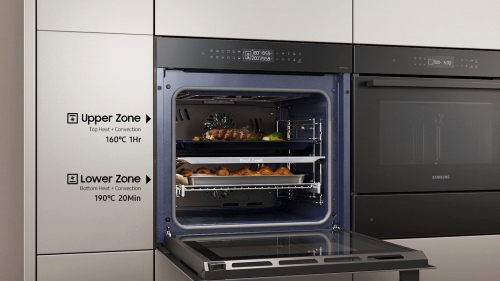

Dual Cook
Choose how you cook different meals to optimize results. Dual Cooks upper and lower zones work independently or together. Use the upper zone for smaller dishes, both together to prepare a variety of dishes with different settings and achieve tasty results, or the whole oven for large dishes.
Always keeps the oven neat with heat

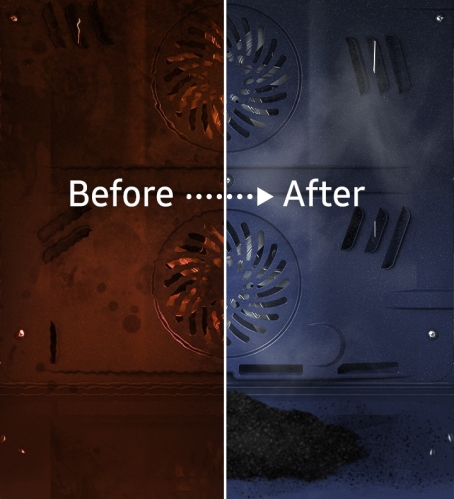

Pyrolytic Cleaning[1]
Keep the inside of your oven neat and clean without wasting time and effort scrubbing or using costly cleaning products. A Pyrolytic Cleaning[1] system heats the cavity to burn off any grease and residue left from cooking. Everywhere is left spotless with only a few ashes to wipe away.
More joy, less burden

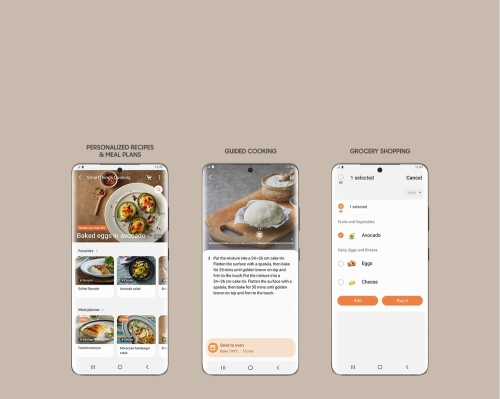

SmartThings Cooking
Make your kitchen experience more joyful. SmartThings Cooking[2] saves time and minimises the burden of cooking. By understanding your needs, it recommends personalised recipes[3] and creates a weekly meal plan. It also offers a guided cooking experience and enables effortless grocery shopping[4].
Totally even cooking

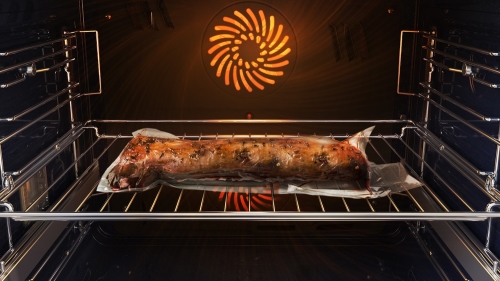

Air Sous Vide[5]
Cook food more evenly without it overcooking or drying out. An Air Sous Vide[5] system accurately senses the temperatures in each cavity and maintains an even temperature for a long period. So everything is cooked thoroughly, wherever it is in the oven, and tastes deliciously tender and juicy.
Cook much more

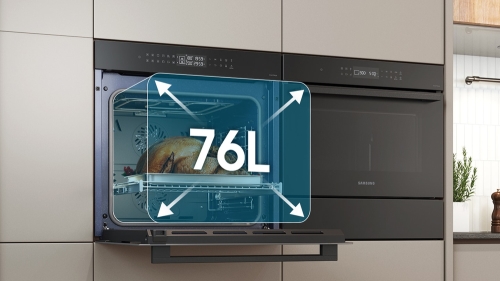

Big Capacity (76L)
Create more and larger dishes with a massive 76 litre capacity oven. It opens up more possibilities in home cooking. You can prepare lots of different food together, like everything you need for a party. Or it can easily accommodate large items, like a king-size turkey, for a family gathering.
Remarkably efficient
A+ rated energy efficiency
Make your home energy efficient. You can use the whole oven and enjoy exceptional A+ rated energy efficiency. All with the convenience of a large and flexible oven space.

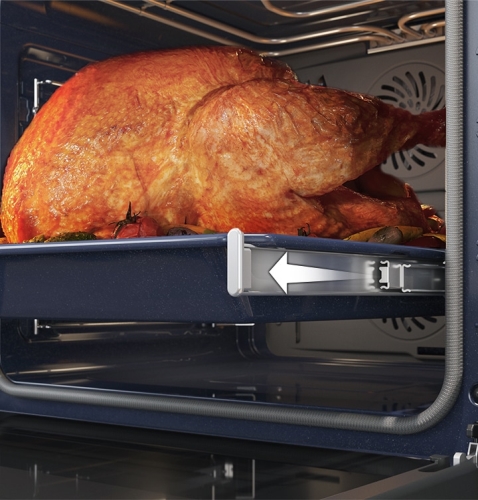

Smooth gliding shelf
Telescopic Rail
Get things in and out of the oven much more easily. The Telescopic Rail slides in and out smoothly with hardly any effort, even if youre using large or heavy pans. It creates much less friction, so its much easier to load and unload. And you can baste, turn and season food without any spills.
