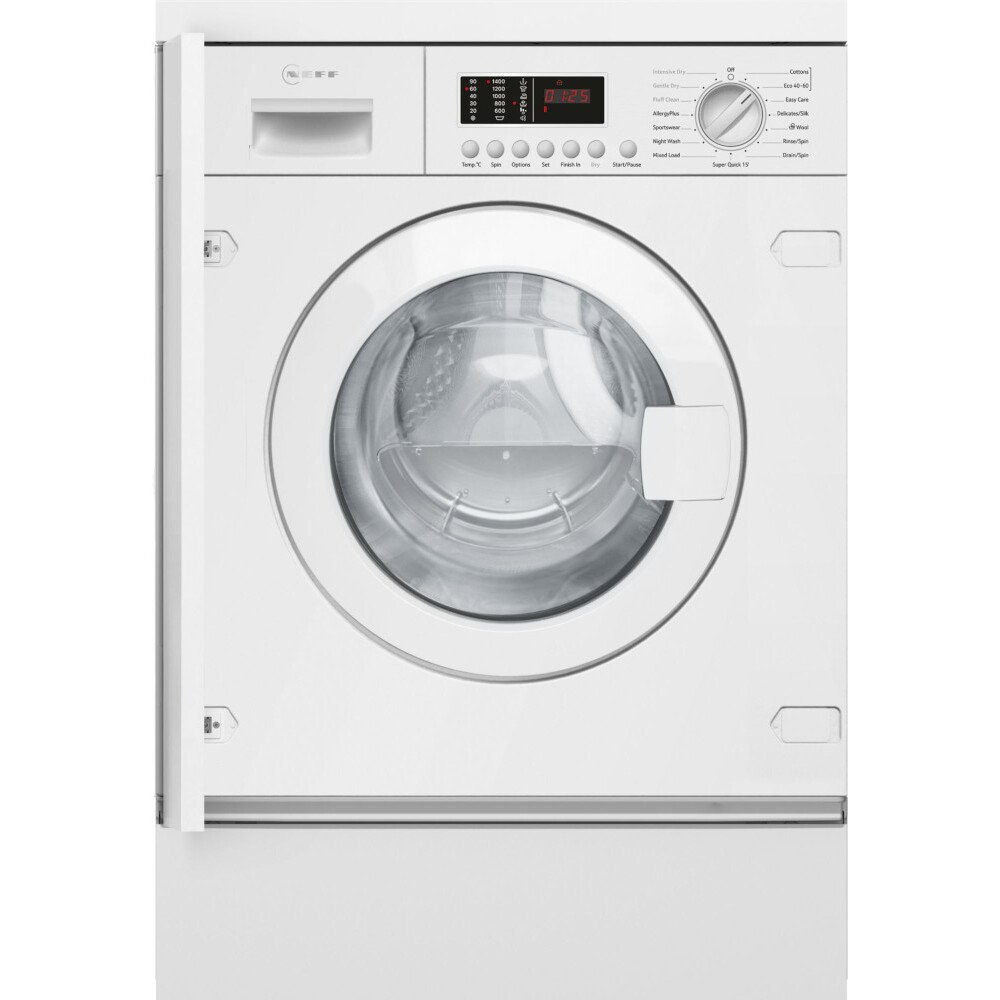

Neff V6540X3GB
Integrated Washer Dryer
(Discontinued)

This item is not currently available

Look for a newer alternative here

Service that goes further

Product code: V6540X3GB
Capacity (kg) - Wash 7/Dry 4
Spin Speed (rpm) - 1355
Large LED Display
Aqua Stop - For a lifetime protection in case of water damage
Warranty - 2 years parts and labour

Product Dimensions (HxWxD) (mm) - 820 x 595 x 584

Energy
Rating

Large display with 24h End Time Delay.

We love being generous, particularly when it comes to space. Our large LED displays are a bright part of this grand philosophy. The lit display encourages you to go ahead with straightforward decisions: handle your appliance with one-touch symbols and comfortable touch buttons. At the same time, our 24-hour start delay option takes your freedom to a new level: pre-set up to 24 hours in advance. Time your laundry when it suits you and not the other way round.

Water damage? Not a worry.

The safety system stops leaks by closing the safety valve right next to the tap. Just the way you would expect your NEFF appliance to react: on time and on task.

Type	Integrated Washer Dryer
Brand	Neff
Model	V6540X3GB
EAN:	4242004274209
Note	We have a demonstration model of this item on display in our showroom available for you to view

Large LED Display - Large display for easier navigation and wash programme delay of up to 24 hours
Aqua Stop - For a lifetime protection in case of water damage
7/4 kg load capacity: wash 7 kg, dry 4 kg

Loading type	Front-load
Appliance placement	Built-in
Product colour	White
Door hinge	Left
Built-in display	Yes
Door colour	White
Door handle colour	White
Control type	Buttons, Rotary
Display type	LED
Drum volume	52 L

Rated capacity (washing & drying)	4 kg
Maximum spin speed	1355 RPM
Spin-drying class	B
Rated capacity (washing)	7 kg
Washing programs	Cold, Delicate/silk, Hand/wool, Hygiene/anti-allergy, Mix, Night, Quick, Rinse & spin, Spin/drain, Sport
Drying programs	Auto, Gentle care, Intensive/outdoor
AquaStop function	Yes
Delayed start timer	Yes
Adjustable spin speed	Yes
Noise emission class	A
Noise level (spin)	72 dB
Cycle time washing	170 min
Cycle time (quick washing program)	15 min
Cycle time washing & drying	330 min
Delay start (max)	24 h
Adjustable temperature	Yes
Minimum spin speed	600 RPM
Foam control system	Yes
Load balancing system	Yes
Residual moisture	52%

Remaining time indication	Yes
Child lock	Yes
Door opening angle	180°
Cord length	2.2 m
Adjustable feet	Yes
Feet adjustment	15 mm
Buzzer	Yes
On/off button	Yes

Energy efficiency class (washing)	E
Energy efficiency class (washing & drying)	E
Water consumption washing per cycle	44 L
Energy consumption per 100 cycles (washing)	77 kWh
Water consumption washing & drying per cycle	68 L
Energy consumption per 100 cycles (washing & drying)	266 kWh
Energy efficiency scale	A to G
Energy consumption washing per cycle	0.774 kWh
Energy consumption washing & drying per cycle	2.662 kWh
Power consumption (standby)	1 W
Power consumption (off)	0.5 W

Manual

Yes

Depth	584 mm
Width	595 mm
Height	820 mm
Weight	85.1 kg
Depth with door open	960 mm

View Product Manual
View Technical Drawing
View Technical Drawing 2
View Technical Drawing 3
View Technical Drawing 4
View Technical Drawing 5

Like most modern washer dryers, this one is cold fill only. Some older washer dryers also have a hot water intake, but in reality, little hot water ever gets into these machines on most washes. This is because hot water cools rapidly in household water pipes, and by the time it starts to run hot the washing machine has almost finished filling. This is particularly true nowadays because modern washing machines use a lot less water than ever before.
