Elica BOXIN-LX-90
Integrated Cooker Hood, Stainless Steel, A Rated
Service that goes further
- Product code: BOXIN-LX-90
- Extraction Type - Ducted
- Warranty - 2 years parts and labour

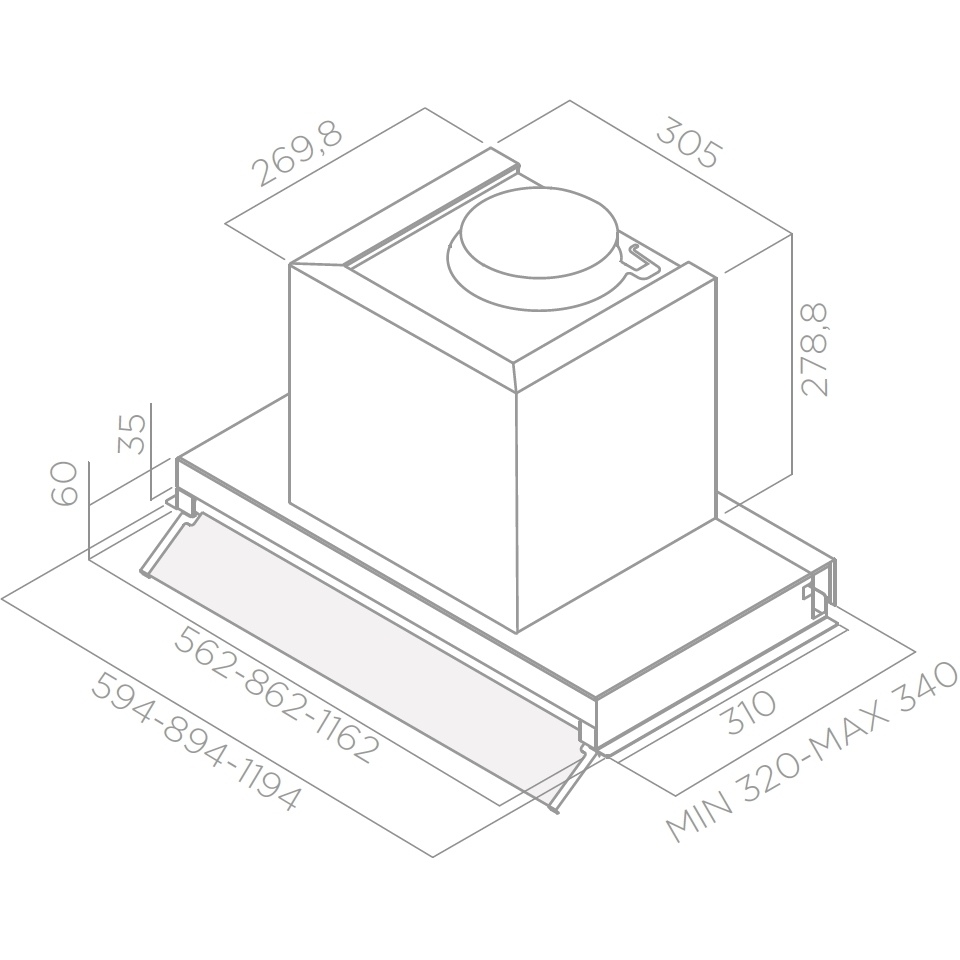

Product Dimensions (HxWxD) (mm) - 278.8 x 894 x 340
A
Energy
Rating
| Type | Integrated Cooker Hood |
| Brand | Elica |
| Model | BOXIN-LX-90 |
| Also known as: | BOXINLX90 |
| EAN: | 8020283040632 |
| Type of extraction | Ducted |
| Noise level | 67 dB |
| Minimum distance from electric hob | 500 mm |
| Minimum distance from gas hob | 500 mm |
| Type | Built-in |
| Product colour | Stainless steel |
| Exhaust connection diameter | 150 mm |
| Grease filter type | Aluminium |
| Bulb power | 5 W |
| Number of bulbs | 2 bulb(s) |
| Bulb type | LED |
| Connected load | 180 W |
| Energy efficiency class (old) | B |
| Width | 894 mm |
| Depth | 340 mm |
| Height | 278.8 mm |
| Weight | 10 kg |
| Package width | 960 mm |
| Package depth | 462 mm |
| Package height | 363 mm |
| Package weight | 12 kg |
| Airflow | 581 m³/h |
2 years parts and labour.Keep a copy of your Sales Invoice as proof of purchase.
2
Year
Warranty
Compare with similar items
Product
Price
£385
£379
£355
£429
£477.56
Type
Integrated Cooker Hood
Integrated Cooker Hood
Integrated Cooker Hood
Integrated Cooker Hood
Integrated Cooker Hood
Brand
Elica
Bosch
Elica
Neff
Siemens
Model
BOXIN-LX-90
DBB65CC60B Series 4
BOXIN-LX-60
D67BDN2S0B N70
LJ65BCC60B iQ300
Rating
-
-
1
-
-
Ean
8020283040632
4242005530236
8020283040625
4242004287926
4242003976364
Design
Exhaust connection diameter
150 mm
150 mm
150 mm
150 mm
150 mm
Product colour
Stainless steel
Black
Stainless steel
Black
Black
Type
Built-in
Built-in
Built-in
Wall-mounted
Built-in
Control type
-
Buttons
-
Touch
Buttons
Cord length
-
1.3 m
-
1.3 m
1.3 m
Exhaust connection diameter (min)
-
120 mm
-
-
-
Housing material
-
-
-
Stainless steel
-
Motor included
-
-
-
Yes
-
Number of motors
-
-
-
1
-
Colour name
-
-
-
-
Matt black
Performance
Minimum distance from electric hob
500 mm
430 mm
500 mm
-
430 mm
Minimum distance from gas hob
500 mm
650 mm
500 mm
-
650 mm
Noise level
67 dB
65 dB
67 dB
52 dB
65 dB
Type of extraction
Ducted
Ducted/Recirculating
Ducted
Ducted/Recirculating
Ducted/Recirculating
Fluid dynamic efficiency class
-
B
-
B
B
Grease filtering efficiency class
-
B
-
B
B
Lighting efficiency class
-
A
-
A
A
Maximum extraction power
-
582 m³/h
-
399 m³/h
582 m³/h
Number of speeds
-
3
-
4
3
Boost position air extraction power
-
-
-
699 m³/h
-
Boost position output recirculating power
-
-
-
677 m³/h
-
Maximum recirculating power
-
-
-
410 m³/h
521 m³/h
Noise level (medium speed)
-
-
-
67 dB
60 dB
Noise level (recirculation mode)
-
-
-
71 dB
72 dB
Airflow (low speed)
-
-
-
-
349 m³/h
Noise level (high speed)
-
-
-
-
65 dB
Noise level (low speed)
-
-
-
-
54 dB
Other Features
Airflow
581 m³/h
-
581 m³/h
-
-
Country of origin
-
-
-
-
Germany
Fluid dynamic efficiency (FDE)
-
-
-
-
23.6
Grease filtering efficiency (GFE)
-
-
-
-
89%
Measured air flow rate at best efficiency point
-
-
-
-
594 m³/h
Lighting
Bulb power
5 W
1.5 W
5 W
3 W
1.5 W
Bulb type
LED
LED
LED
LED
-
Number of bulbs
2 bulb(s)
2 bulb(s)
2 bulb(s)
2 bulb(s)
2 bulb(s)
Colour temperature
-
3500 K
-
3500 K
3500 K
Illuminance
-
316 lx
-
-
316 lx
Lighting efficiency (LE)
-
-
-
-
50.2 lux/W
Power
Connected load
180 W
200 W
180 W
115 W
200 W
Energy efficiency class (old)
B
-
B
-
-
AC input frequency
-
50 Hz
-
50\60 Hz
50 Hz
AC input voltage
-
220 - 240 V
-
220 - 240 V
220 - 240 V
Annual energy consumption
-
71 kWh
-
24.5 kWh
71 kWh
Energy efficiency class
-
B
-
A++
B
Energy efficiency scale
-
A+++ to D
-
A+++ to D
A+++ to D
Power source type
-
AC
-
AC
-
Energy efficiency index (EEI)
-
-
-
36.2
-
Motor power
-
-
-
105 W
-
Weight & Dimensions
Depth
340 mm
298 mm
340 mm
500 mm
298 mm
Height
278.8 mm
-
278.8 mm
-
340 mm
Weight
10 kg
7.8 kg
8 kg
11.8 kg
7.7 kg
Width
894 mm
598 mm
594 mm
598 mm
598 mm
Height (max)
-
340 mm
-
1080 mm
-
Installation compartment depth
-
300 mm
-
-
300 mm
Installation compartment height
-
340 mm
-
-
340 mm
Installation compartment width
-
560 mm
-
-
560 mm
Height (min)
-
-
-
635 mm
-
Height without chimney
-
-
-
60 mm
60 mm
Filtering
Grease filter type
Aluminium
Metal
Aluminium
Stainless steel
Stainless steel
Dishwasher proof filter
-
Yes
-
Yes
Yes
Number of filters
-
2 pc(s)
-
-
2 pc(s)
Washable filter
-
Yes
-
Yes
-
Removable filter
-
-
-
Yes
Yes
Packaging Data
Package depth
462 mm
-
462 mm
720 mm
-
Package height
363 mm
-
363 mm
700 mm
-
Package weight
12 kg
-
10 kg
-
-
Package width
960 mm
-
660 mm
580 mm
-
Brand-specific Features
Siemens technologies (air extraction)
-
-
-
-
Washable Grease Filter
