Bosch DLN77AC60B

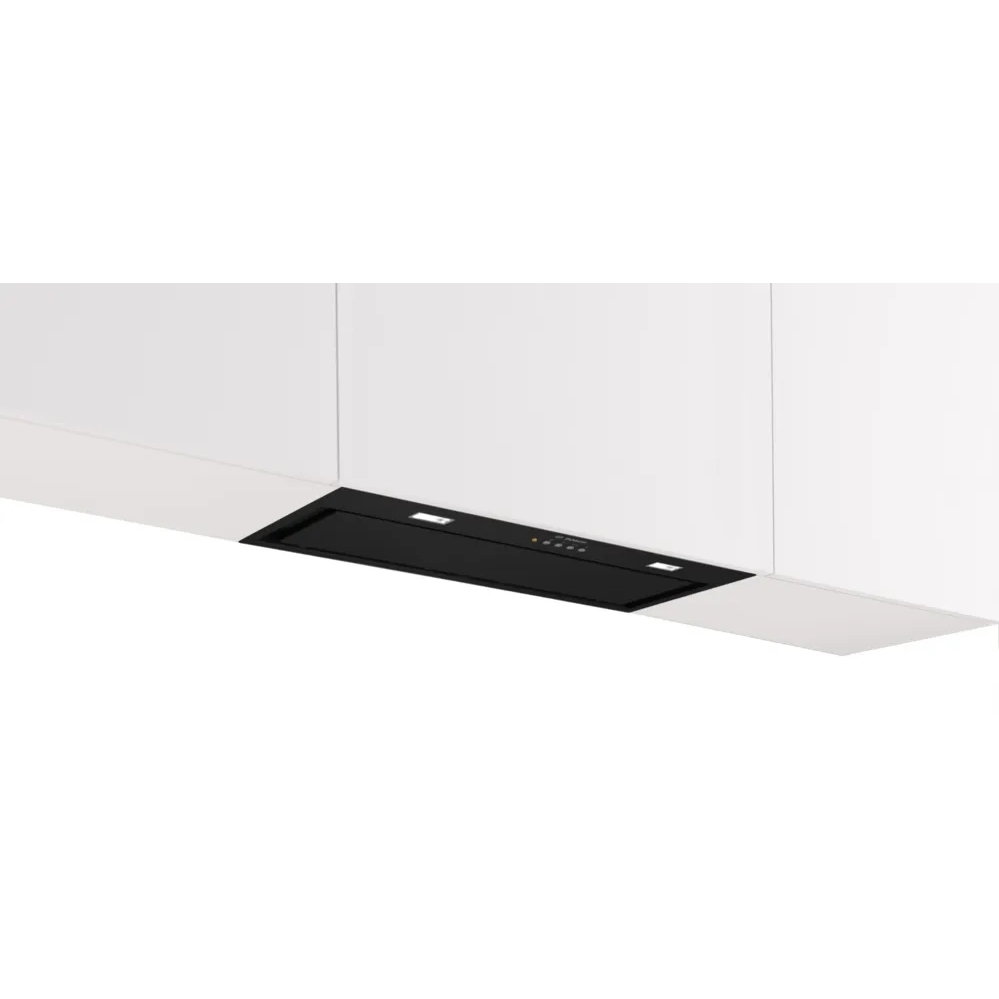

Canopy Cooker Hood
(Discontinued)

This item is not currently available

Look for a newer alternative here

Service that goes further

Product code: DLN77AC60B
Extraction Rate (m³/h) - 595
Extraction Type - Ducted/Recirculating
High extraction rate - for continuously clean air in the kitchen
LED Illumination
Warranty - 2 years parts and labour

Product Dimensions (HxWxD) (mm) - 345 x 700 x 282

Energy
Rating

Get the perfect lighting to prepare your dinner

With LED illumination in your Bosch hood, you can enjoy clear and bright illumination for your cooking needs. LED lights have an impressive lifespan, providing several thousand operating hours. Additionally, they consume much less electricity compared to conventional halogen spots, resulting in energy savings. Experience long-lasting and energy-efficient illumination with LED lights in your Bosch hood.

Almost invisible but not absent

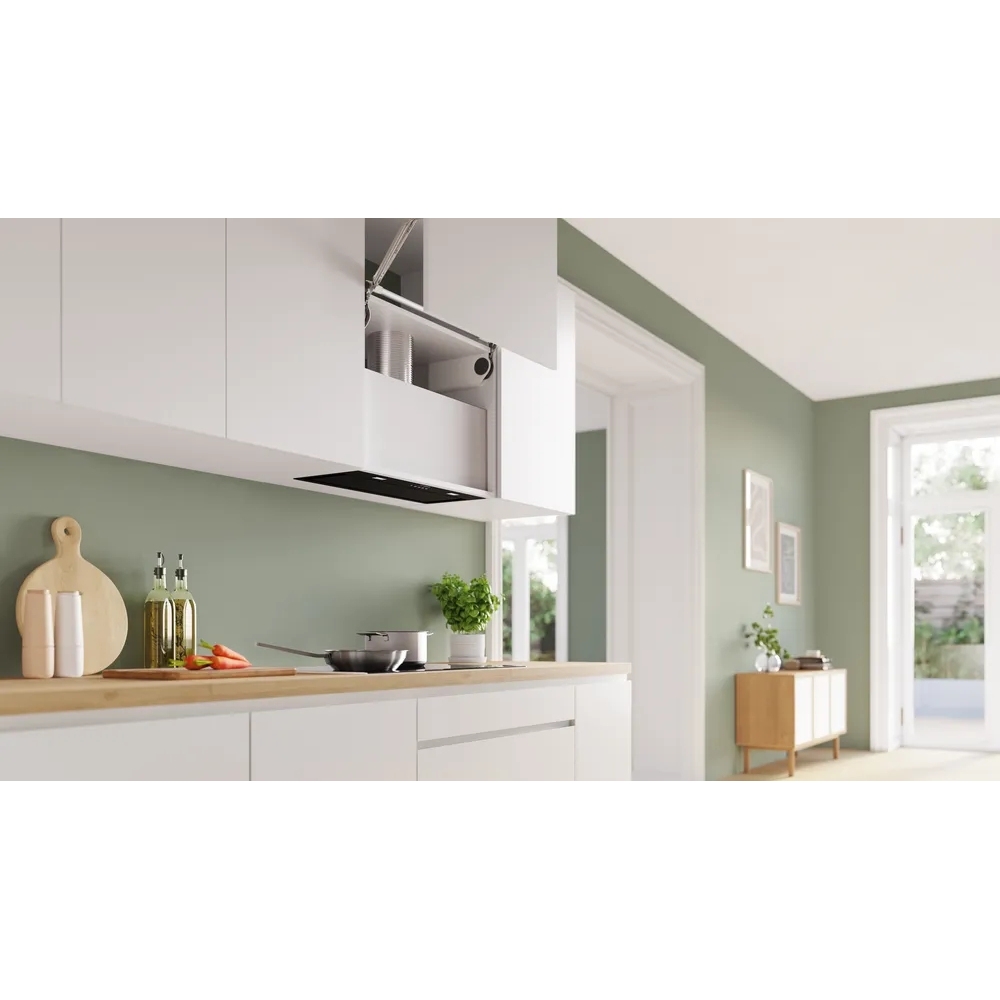

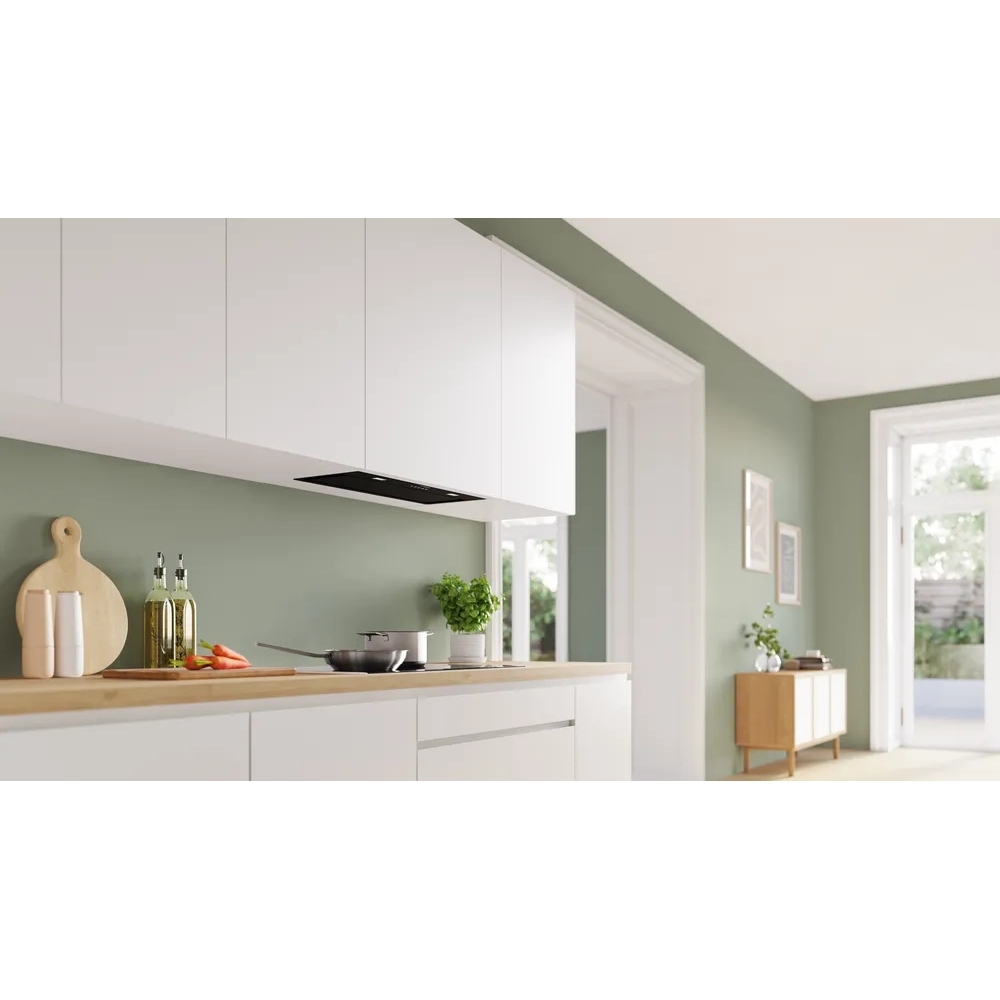

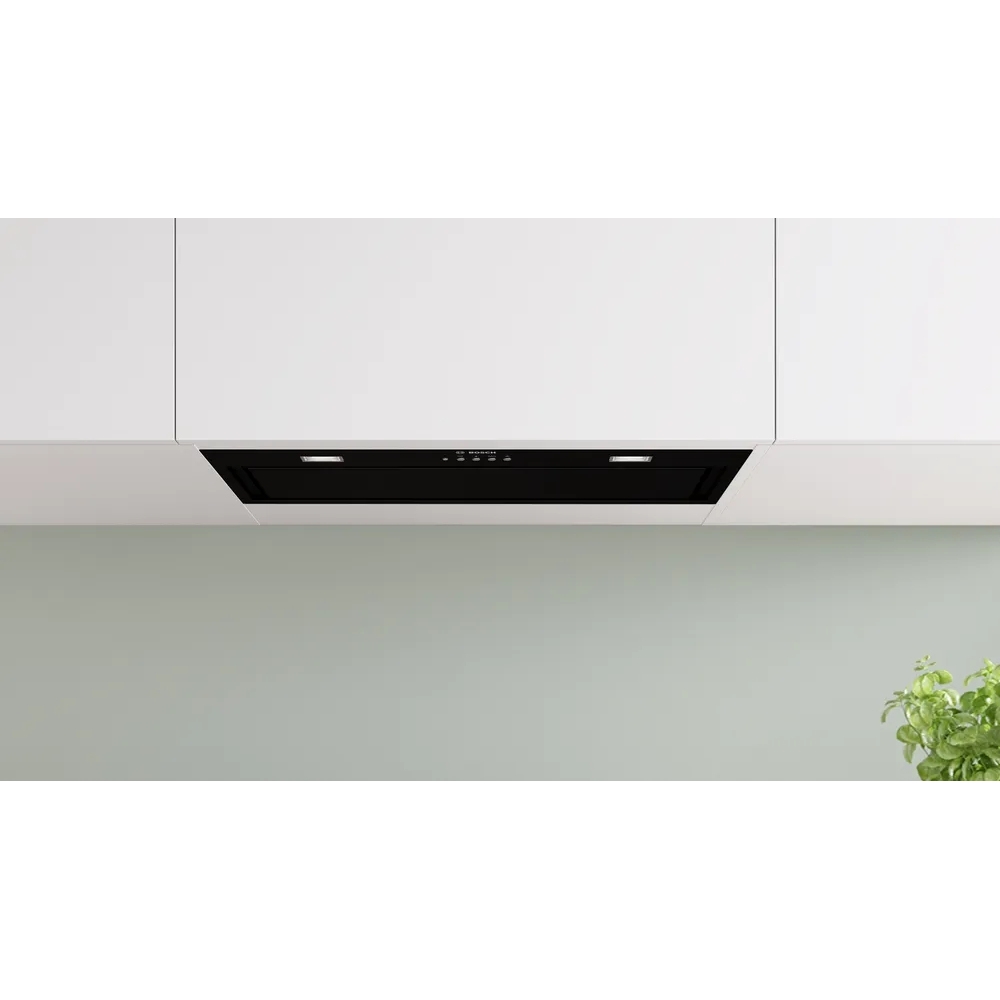

Bulky extractor hoods are a thing of the past with our seamless canopy hoods. They're designed to be almost invisible, tucking away neatly in your upper cabinet. So your kitchen stays just the way you like it - stylish and spacious.

Deal with whatever steam comes your way

Now it is easy to keep control in the kitchen. The Intensive speed setting with reset quickly increases the extraction rate to match whatever steam is coming its way. And thanks to the integrated self-timer, which automatically reduces the rate after a few minutes, you can stay focused on cooking.

Type	Canopy Cooker Hood
Brand	Bosch
Model	DLN77AC60B
EAN:	4242005475643

High extraction rate - for continuously clean air in the kitchen
LED Illumination: the energy-saving lighting provides a clear and bright illumination for your hob area
Seamless integration: thanks to flush installation, the canopy hood is almost invisible in upper cabinets
Intensive Setting: the powerful way to beat intense steam during cooking

Maximum extraction power	595 m³/h
Type of extraction	Ducted/Recirculating
Fluid dynamic efficiency class	A
Lighting efficiency class	A
Grease filtering efficiency class	D
Number of speeds	3
Noise level	63 dB
Maximum recirculating power	580 m³/h
Boost position air extraction power	730 m³/h
Boost position output recirculating power	705 m³/h
Intensive speed	Yes
Noise level (high speed)	63 dB
Noise level (intensive speed)	70 dB
Noise level (recirculation mode)	73 dB
Minimum distance from electric hob	500 mm
Minimum distance from gas hob	650 mm

Type	Built-in
Product colour	Black

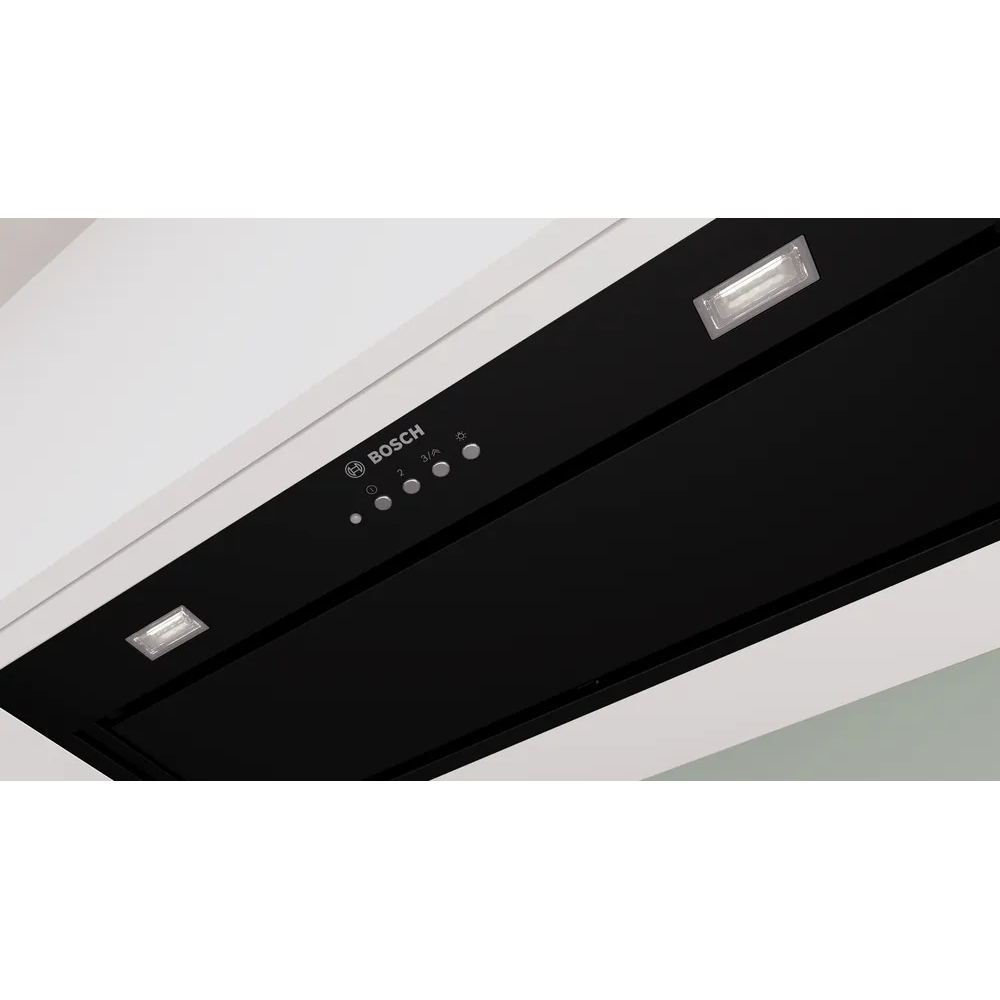

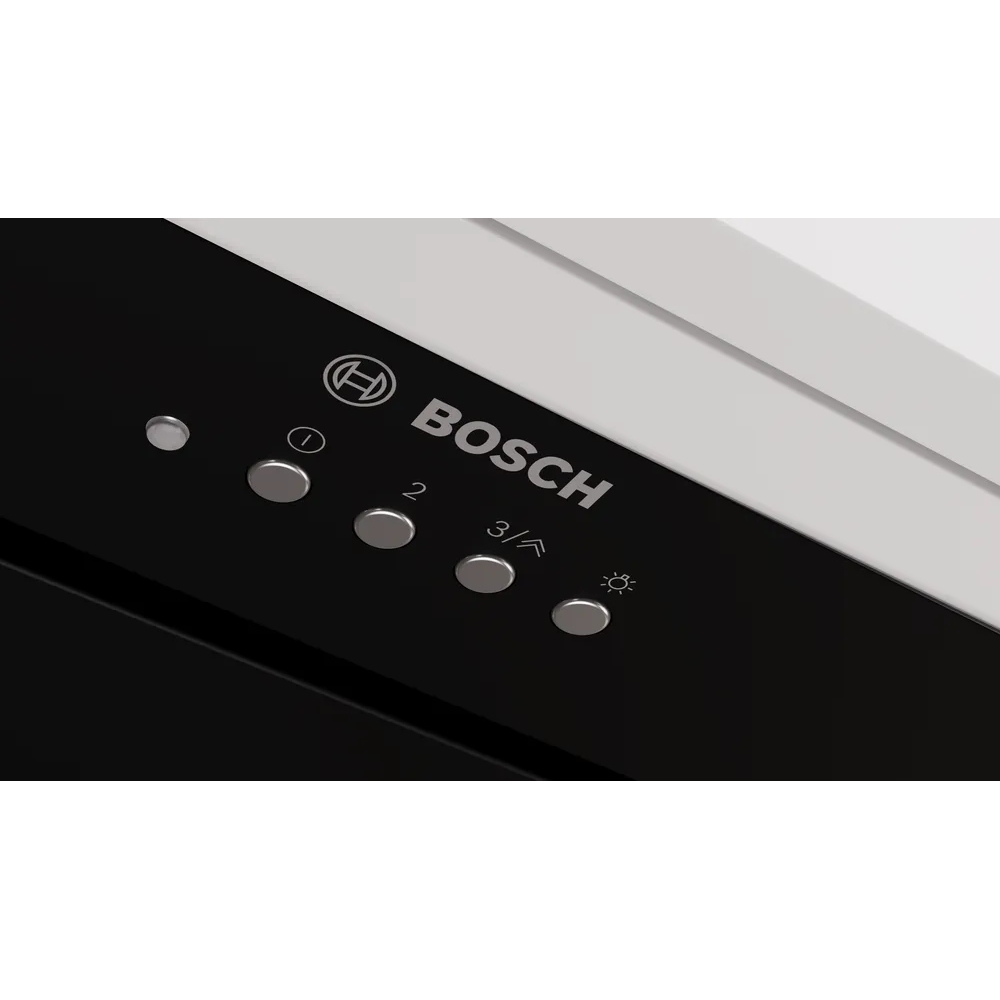

Control type	Buttons
Cord length	1.5 m
Exhaust connection diameter	150 mm
Exhaust connection diameter (min)	120 mm
Motor included	Yes

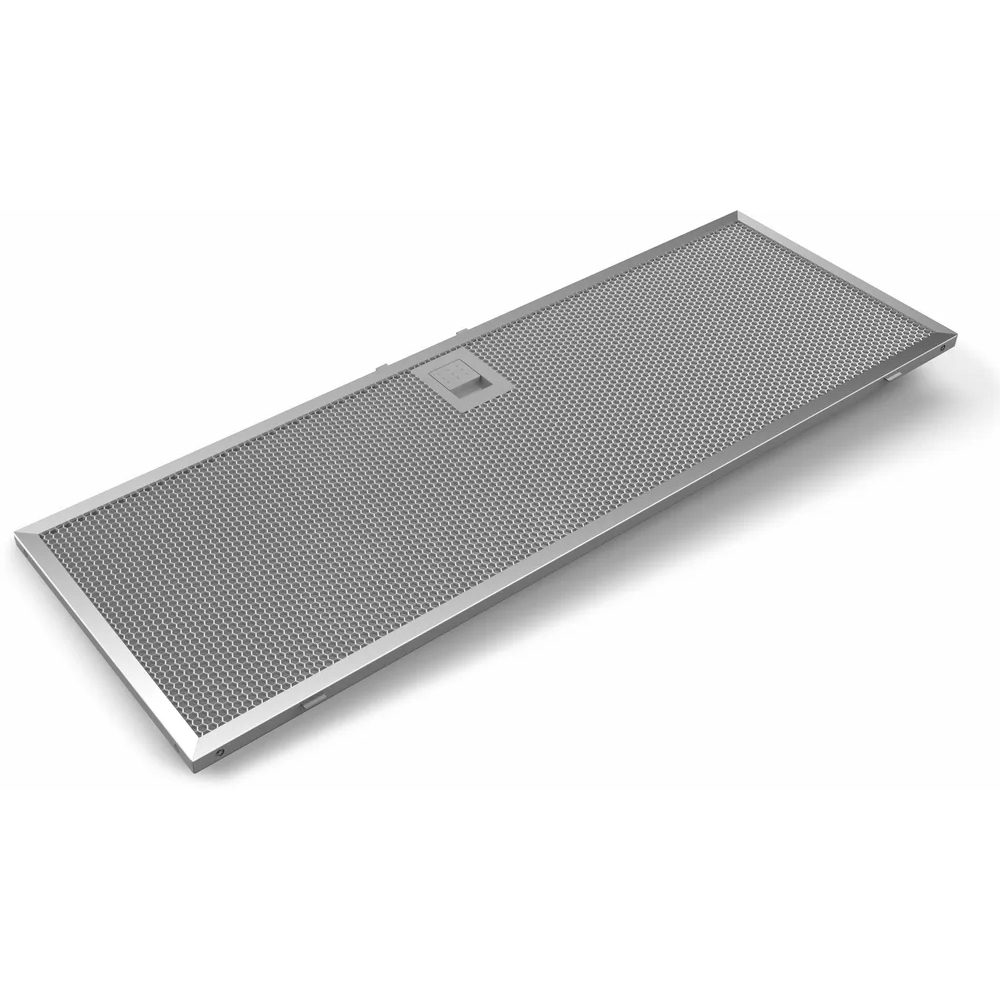

Grease filter type	Aluminium
Number of filters	1 pc(s)
Washable filter	Yes

Bulb power	2 W
Number of bulbs	2 bulb(s)
Bulb type	LED
Illuminance	400 lx
Colour temperature	4000 K

Energy efficiency class	A
Annual energy consumption	56 kWh
Energy efficiency scale	A+++ to D
Connected load	250 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Current	3 A

Width	700 mm
Depth	282 mm
Height	345 mm
Weight	9.1 kg
Installation compartment width	676 mm
Installation compartment depth	264 mm
Installation compartment height	345 mm

Package width	480 mm
Package depth	787 mm
Package height	385 mm

Bosch technologies (air extraction)

Washable Grease Filter

View Product Manual
View Technical Drawing
View Technical Drawing 2
View Technical Drawing 3
View Technical Drawing 4
