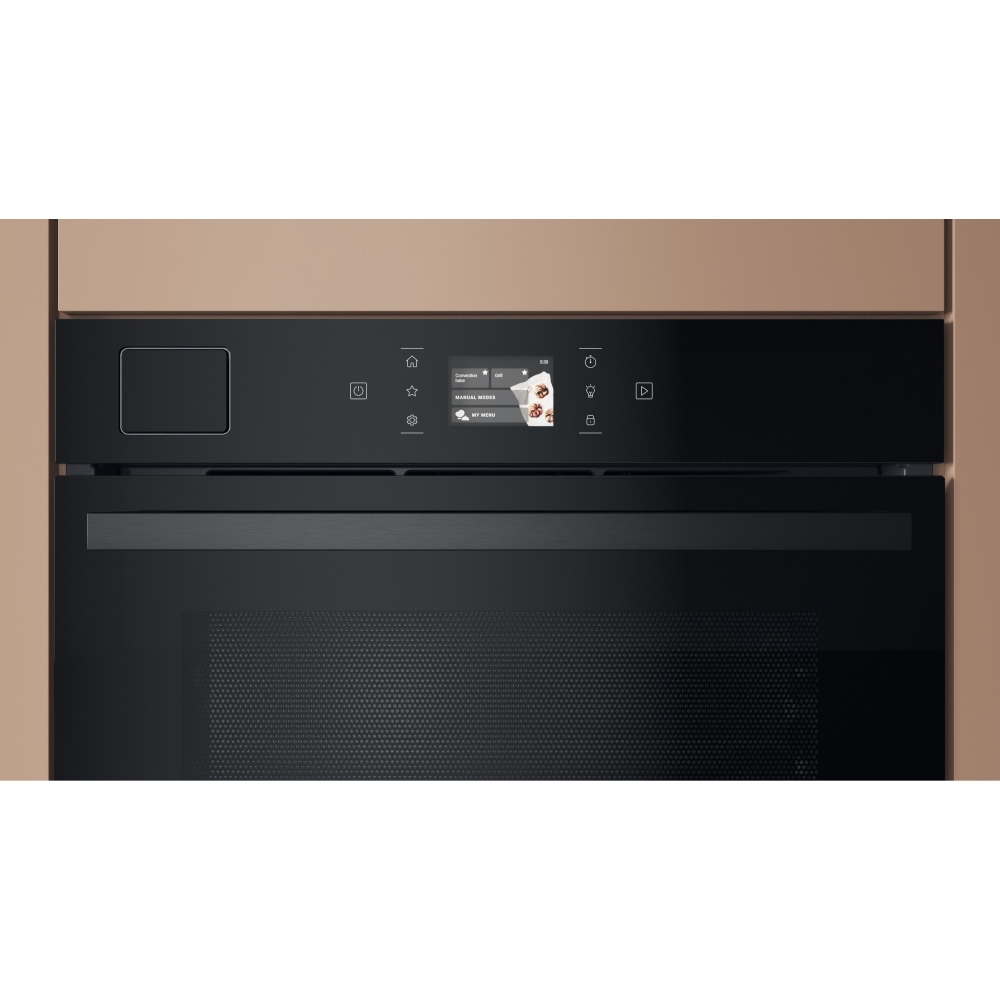

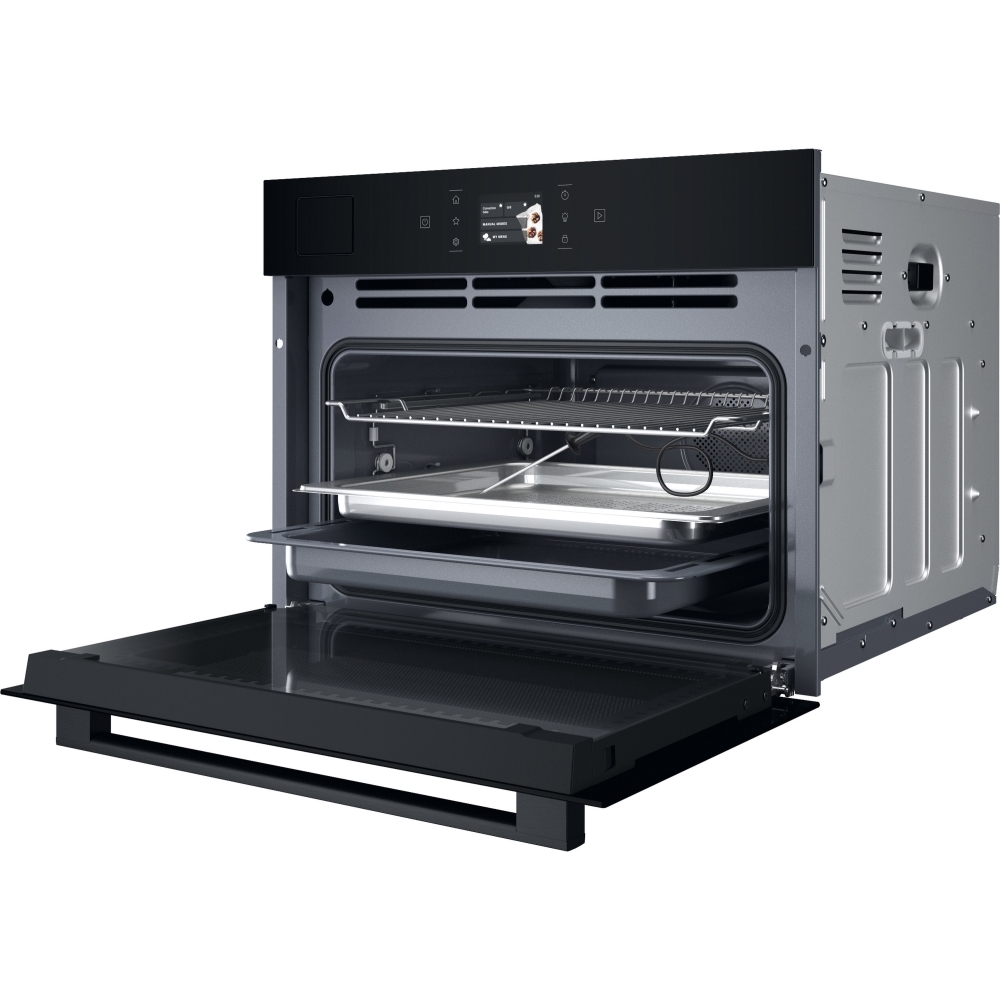

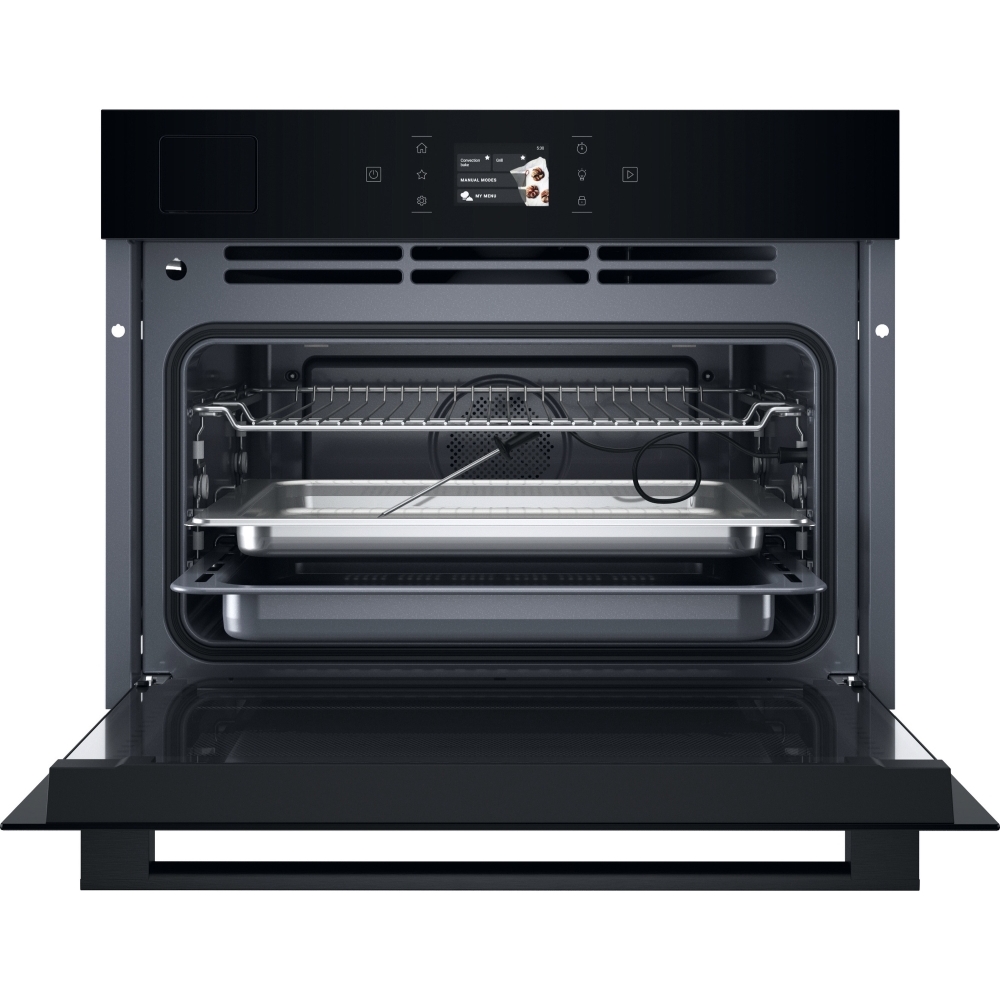

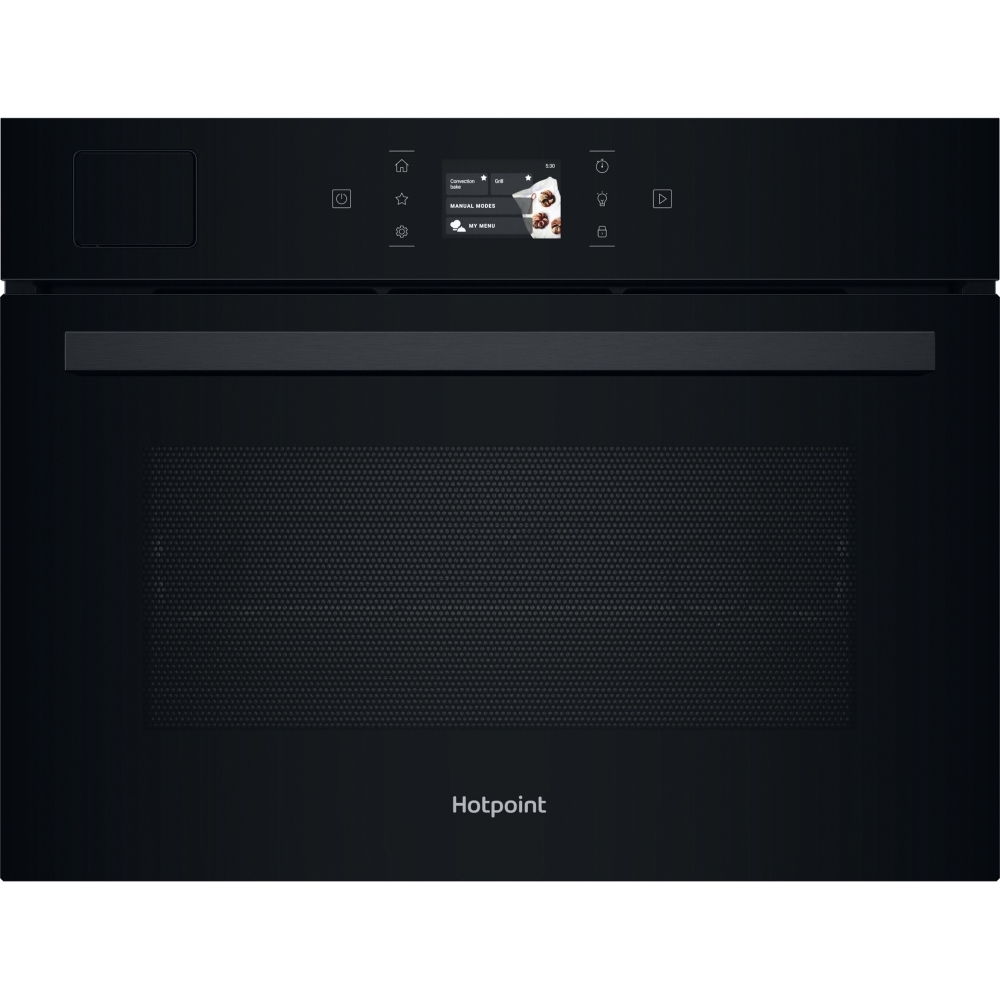

Hotpoint HCS9A9PHTSBA
Compact Oven, Black, A+ Rated
£789.99
Spread the cost:
£65.84 for 12 months at 0.0% APR***
Service that goes further
- Product code: 859991685780
- Capacity (Usable Litres) - 48
- Electrical Connection - Hard-wired
- Compact Oven with Steam
- Cook 3
- Warranty - 10 years parts and 5 years labour
Product Dimensions (HxWxD) (mm) - 455 x 559 x 543
A+
Energy
Rating
| Type | Compact Oven |
| Brand | Hotpoint |
| Model | HCS9A9PHTSBA |
| Also known as: | 859991685780 |
| EAN: | 5054645685783 |
| Compact Oven with Steam | |
| Cook 3 | |
| Diamond (Steam) Cleaning | |
| ActiveSteam | |
| Soft Close | |
| Meat Probe |
| Oven size | Medium |
| Total oven(s) interior capacity | 48 L |
| Grill | Yes |
| Fan grill function | Yes |
| Number of ovens | 1 |
| Number of shelves | 1 shelves |
| Number of shelf positions | 3 |
| Cleaning type | Steam |
| Interior light | Yes |
| Product colour | Black |
| Control type | Touch |
| Control position | Front |
| Cord length | 150 m |
| Built-in display | Yes |
| Display type | LCD |
| Number of grids | 1 |
| Lamp type | LED |
| Door hinge | Down |
| Door material | Glass |
| Easy to clean | Yes |
| Timer type | Digital |
| Delayed start timer | Yes |
| Child lock | Yes |
| Energy efficiency class | A+ |
| Energy consumption (conventional) | 0.61 kWh |
| Energy consumption (forced convection) | 0.7 kWh |
| Connected load | 3100 W |
| AC input voltage | 220-240 V |
| AC input frequency | 50 Hz |
| Current | 16 A |
| Power plug type | Hard Wired |
| Power connection type | Hard-wired |
| Hotpoint technologies (cooking) | Cook 3, Diamond® clean, Soft closing door |
| Width | 559 mm |
| Depth | 543 mm |
| Height | 455 mm |
| Weight | 31.5 kg |

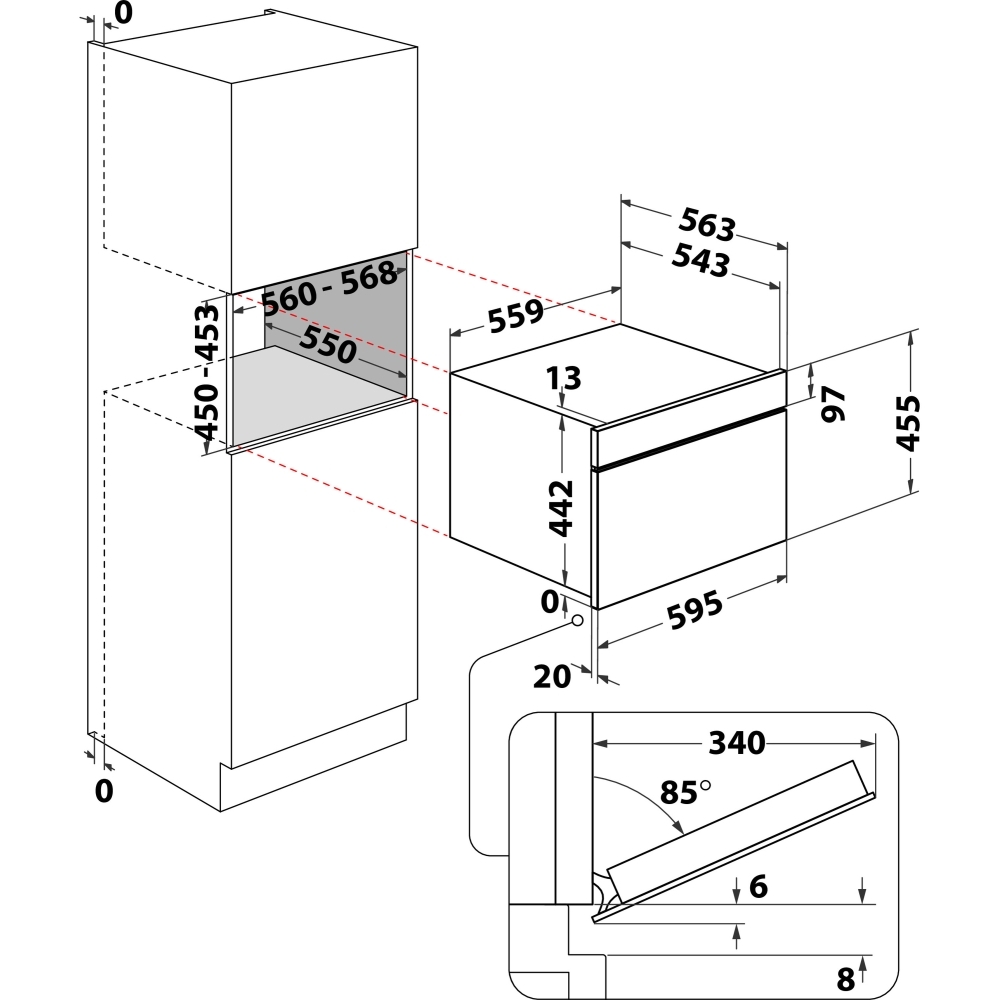

| Installation compartment width | 568 mm |
| Installation compartment width (min) | 560 mm |
| Installation compartment depth | 550 mm |
| Installation compartment height | 453 mm |
| Installation compartment height (min) | 450 mm |
| Installation compartment height (max) | 453 mm |
| Package width | 684 mm |
| Package depth | 673 mm |
| Package height | 584 mm |
| Package weight | 35.5 kg |

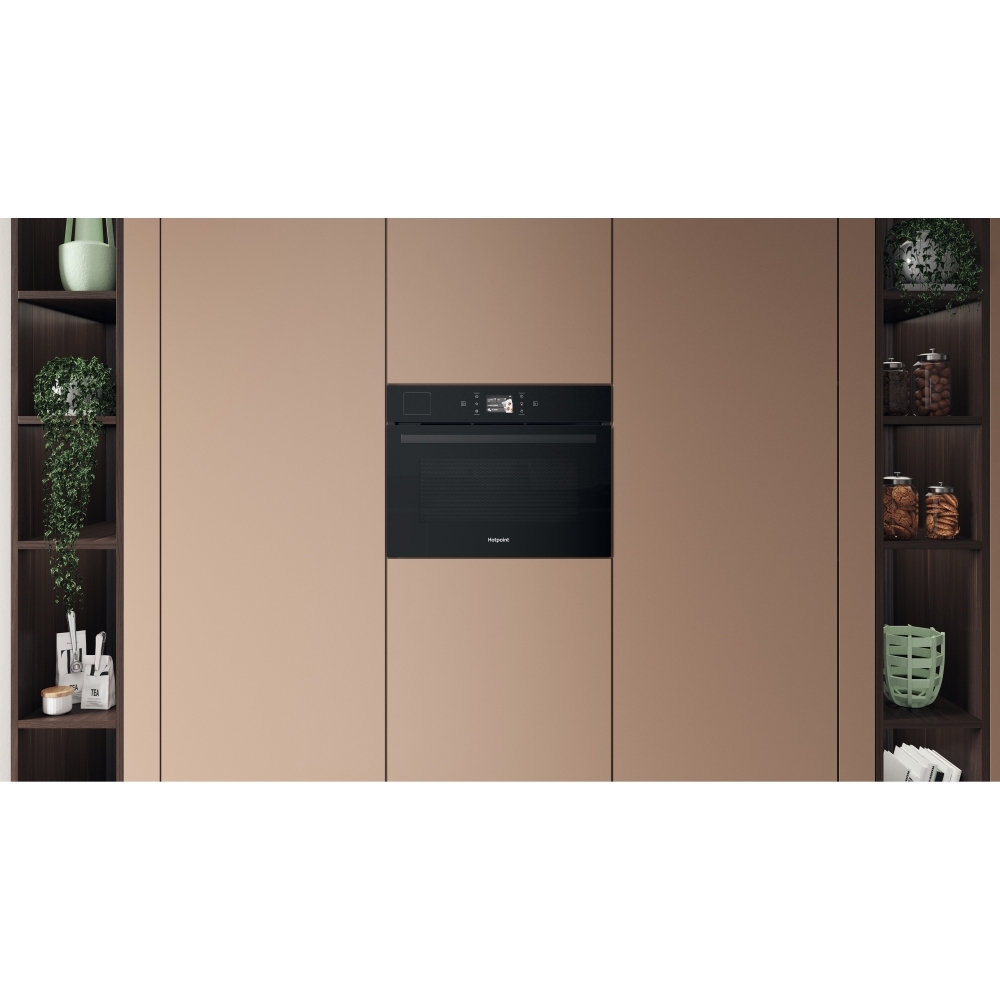

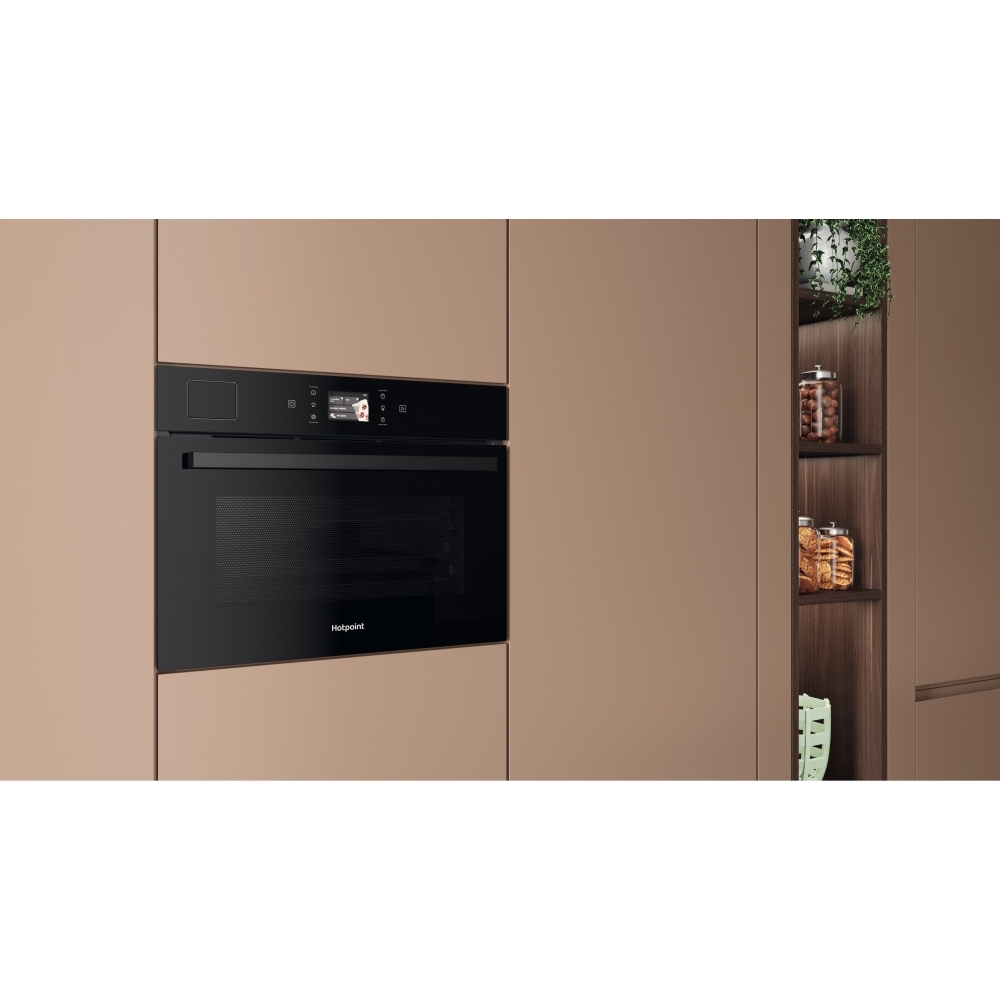

Important Product Information: This is a built in Compact Oven, it can be built in at eye-level or underneath a worktop.
10 years parts and 5 years labour, subject to registration within 28 days of delivery. To activate your warranty go to www.hotpoint.co.uk/claim-hotpoint-warranty
