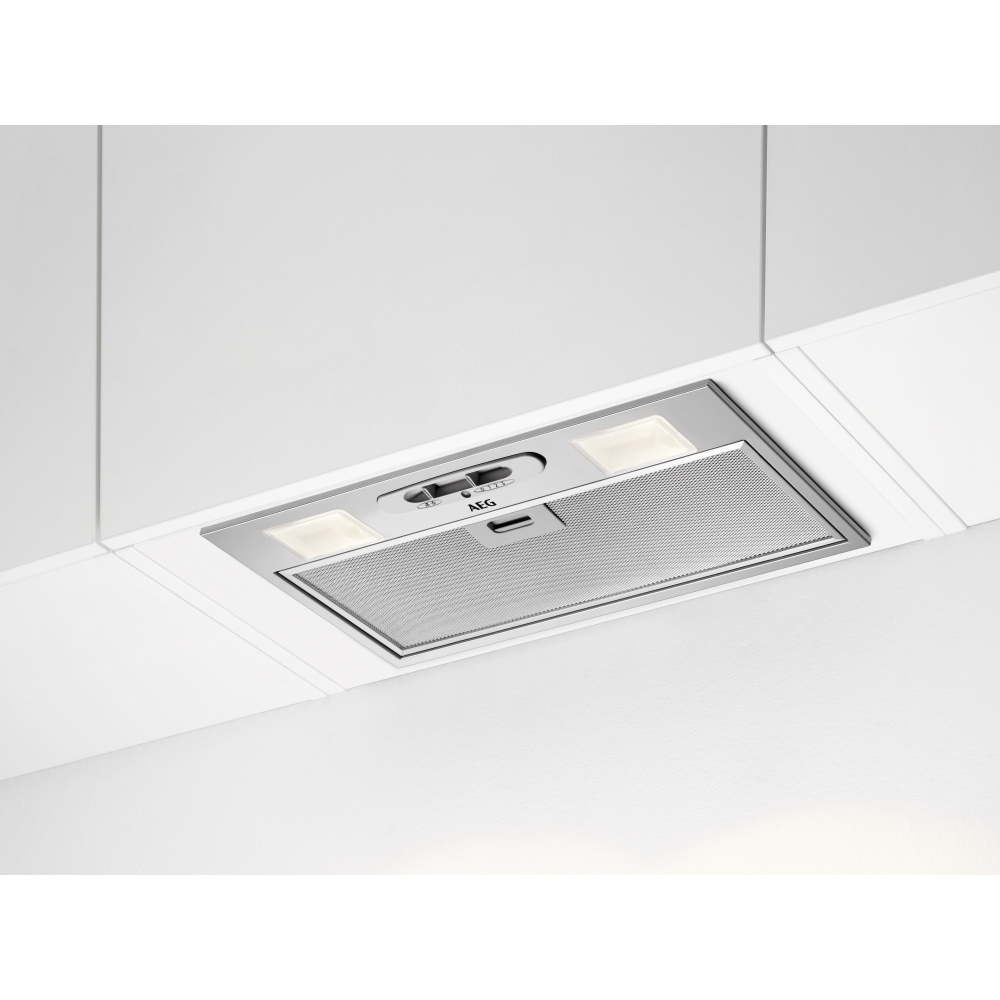

AEG DGX3523S 5000 Canopy Cooker Hood, Grey, C Rated

Double-click the image to zoom.

Double-tap or pinch the image to zoom.

AEG DGX3523S 5000
Canopy Cooker Hood, Grey, C Rated

£129

£135 with delivery

Add to basket

Service that goes further

In Stock

Rapid Delivery

Installation & Recycling Available**

Protection available from £2.99 p/m

Flexible Finance Options

£0 today, then 3 payments of £43 at 0% interest when you choose a 3 month plan.

Product code: DGX3523S
Extraction Rate (m³/h) - 330
Extraction Type - Ducted/Recirculating
Effectively removes unpleasant odours for a fresh kitchen
LEDlights for more refined cooking
Warranty - 2 years parts and labour

Product Dimensions (HxWxD) (mm) - 158.4 x 520 x 284

Energy
Rating

The 3000 ExtractionTech Standard hood features a reliable motor for effective odour extraction while preparing meals. Your kitchen air remains fresh and clean for a better cooking experience, everyday.

Keep the kitchen fresh with the ExtractionTech Standard hood.

The ExtractionTech Standard hood features a reliable motor for effective odour extraction while preparing meals. Your kitchen environment remains fresh and clean for a better cooking experience, everyday.

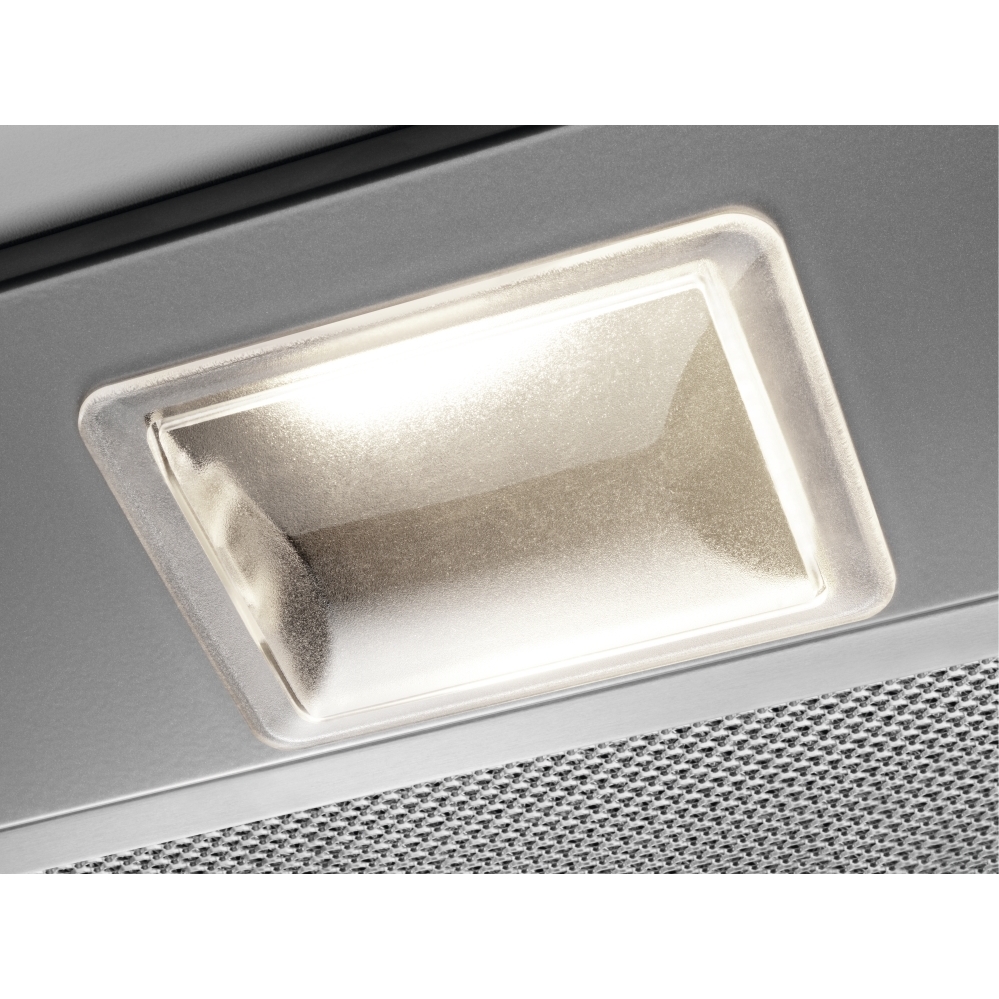

Spotlight the details with the Pure Illumination

Energy-efficient Pure Illumination provides full visibility while cooking. The LED lights illuminate the entire cooking surface, making it easy to see every detail of your meal preparation.

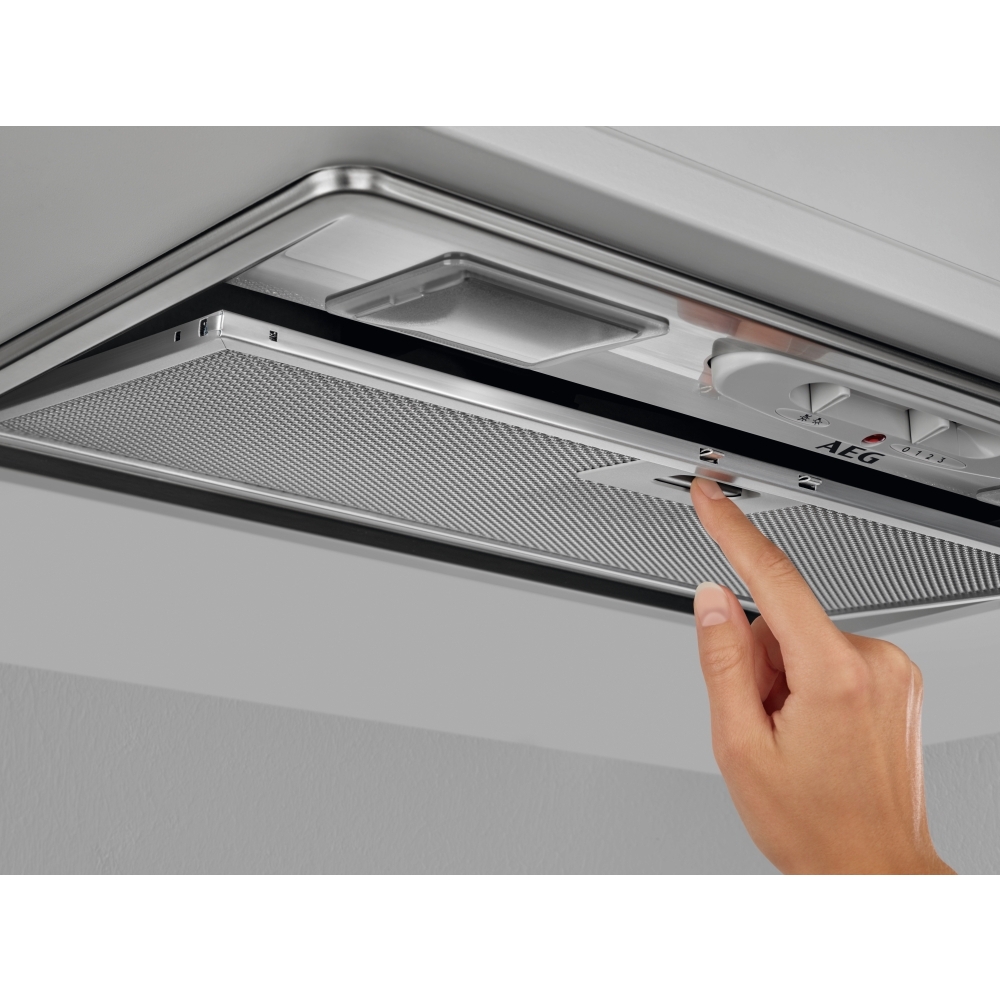

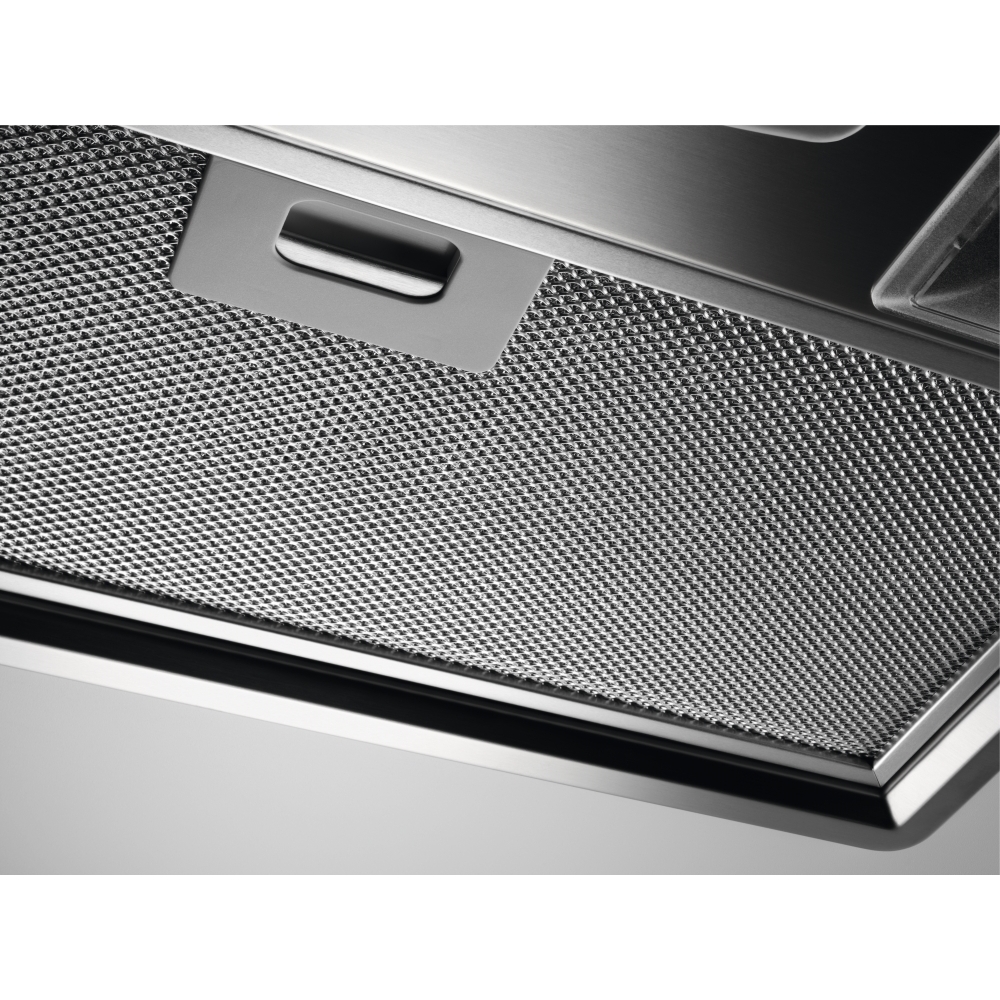

Reliable, easy-to-clean grease filter keeps kitchen fresh

Convenient, reliable grease filter ensures your kitchen stays fresh and hood performs at its best. Wash by hand or in dishwasher.

Type	Canopy Cooker Hood
Brand	AEG
Model	DGX3523S 5000
Also known as:	DGX3523S
EAN:	7333394053097

Effectively removes unpleasant odours for a fresh kitchen - With its strong and reliable performance, the 5000 Extractor hood will efficiently clean the air in your kitchen from odours. Experience a refreshing cooking experience - every time
LEDlights for more refined cooking - Our LEDlights use far less energy than other lights, with a much longer life expectancy and they provide expert illumination for greater detail while cooking
A cooker hood you can rely on - Clean kitchen air with this efficient cooker hood. Its reliable motor helps to efficiently reduce and remove any odours resulting from cooking
Capably capturing kitchen fumes - Reliably capturing cooking odours and fats, this long-lasting filter can be simply replaced when necessary

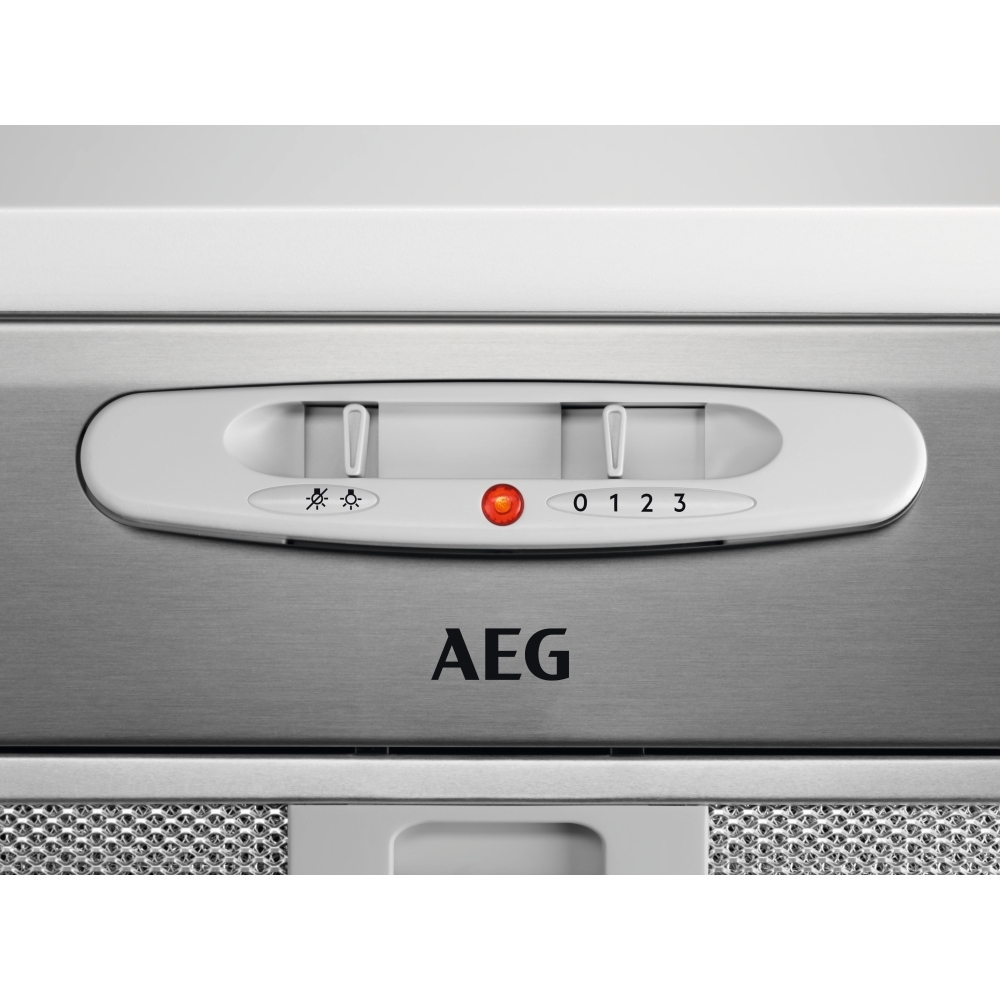

Hood Settings. On Demand. With Mechanical Controls - Innovative Mechanical Controls make regulating the cooker hood functions more convenient. From modifying the fan speed to adjusting the light settings, take complete control of the cooking process
Quick and reliable Best-In-Class Installation - For fast, accurate, and Best-In-Class Installation of your new cooker hood, use PerfectFit solutions. With 25% fewer mounting steps, and tool-free options, it provides a user-friendly experience, making the work an easy one-person job

Maximum extraction power	330 m³/h
Type of extraction	Ducted/Recirculating
Fluid dynamic efficiency class	D
Lighting efficiency class	E
Grease filtering efficiency class	D
Number of speeds	3
Noise level	70 dB
Maximum recirculating power	220 m³/h
Noise level (low speed)	56 dB
Noise level (high speed)	70 dB
Pressure (Pa)	265

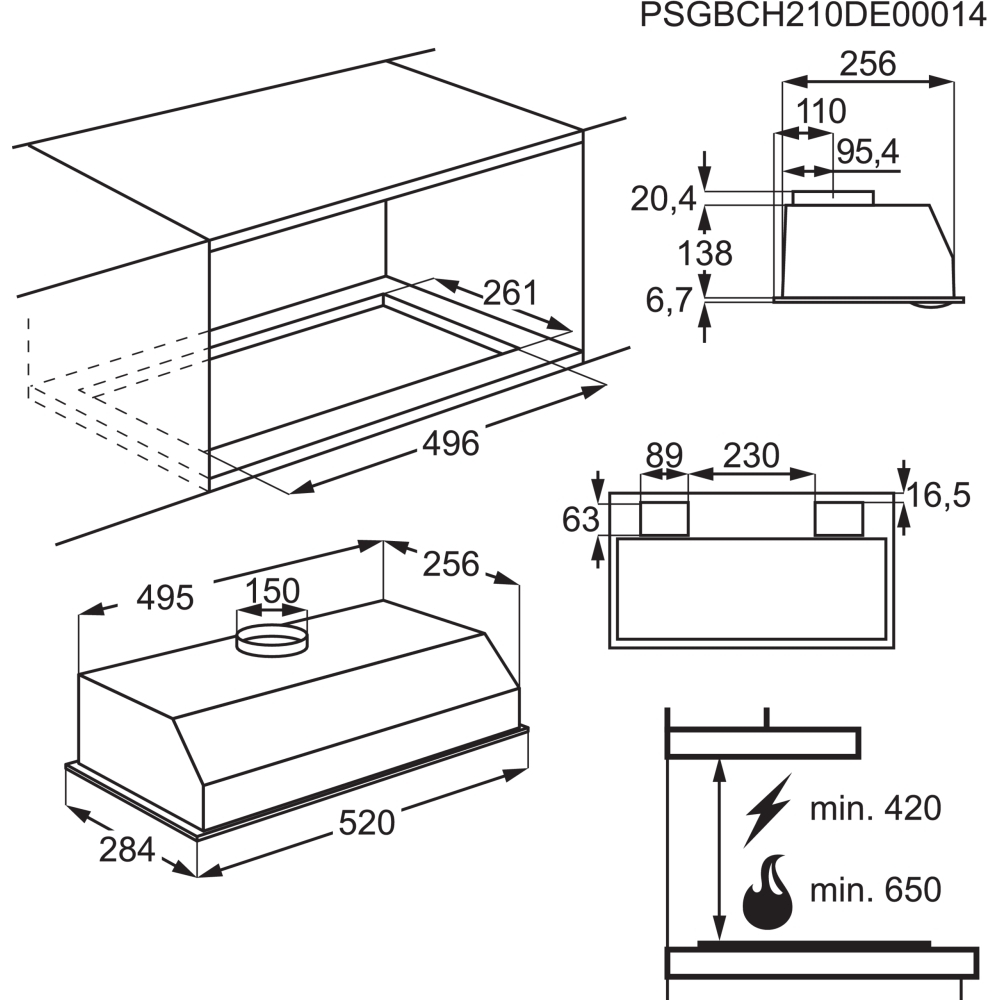

Minimum distance from electric hob	420 mm
Minimum distance from gas hob	650 mm

Type	Built-in
Product colour	Grey
Control type	Slider
Cord length	1.8 m

Grease filter type	Aluminium
Number of filters	1 pc(s)
Removable filter	Yes

Bulb power	8 W
Number of bulbs	2 bulb(s)
Bulb type	LED
Illuminance	78 lx
Lighting position	Center

Energy efficiency class	C
Annual energy consumption	51.9 kWh
Energy efficiency scale	A+++ to D
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency class (old)	C

Width	520 mm
Depth	284 mm
Height	158.4 mm
Height without chimney	138 mm
Chimney height	20.4 mm
Weight	4.3 kg

Package width	600 mm
Package depth	220 mm
Package height	350 mm
Package weight	5.1 kg

Country of origin

Poland

View Product Manual

2 years parts and labour. To activate your warranty go to www.aeg.co.uk/mypages/register-a-product/.
